AWS Integration Troubleshooting
Overview
Use this guide to troubleshoot issues related to the Datadog AWS Integration.
IAM permission errors
The sts:Assumerole permission error indicates an issue with the trust policy associated with the DatadogAWSIntegrationRole. See the Error: Datadog is not authorized to perform sts:AssumeRole documentation on how to resolve this issue.
Note: This error may persist in the Datadog UI for a few hours while the changes propagate.
Resolve all AWS permissions issues
The Resolve all AWS permissions issues button in the AWS Integration page allows you to use a CloudFormation QuickStart stack to update your Datadog integration IAM role and resolve missing permissions issues.
Under Issues, click Resolve All AWS Permissions Issues. This launches a CloudFormation stack that calls Datadog’s public API endpoint and fetches the latest IAM permissions needed for the integration, creates new IAM policies containing those permissions, and attaches these to the integration role. It also attaches the SecurityAudit Managed AWS policy if it is not present.
The policies created are named with a datadog-aws-integration-iam-permissions- prefix, followed by a unique hash to avoid colliding with any existing policies you have configured. You can view the CloudFormation template in Datadog’s public cloudformation-template repository.
Clicking Resolve All AWS Permissions Issues:
- Does not fix broken authentication issues with the role (where the role name, external ID, or trust policy configuration does not let Datadog authenticate with your AWS account)
- Does not fix cases where a Service Control Policy (SCP) is applied that explicitly denies the required permissions
- Does not impact any policies that you attach to the Datadog integration IAM role
- If clicked multiple times, any previous policies created with that prefix are deleted before new policies are created
Data discrepancies
Discrepancy between your data in CloudWatch and Datadog
The sections below describe two important distinctions to be aware of, as well as steps to reconcile the discrepancy.
1. Time aggregation
Datadog displays raw data from AWS in per-second values, regardless of the time frame selected in AWS. This is why Datadog’s value could appear lower. See Time aggregation in the metric documentation for more information.
2. Space aggregation
The space aggregators min, max, and avg have a different meaning between AWS and Datadog. In AWS, average latency, minimum latency, and maximum latency are three distinct metrics that AWS collects. When Datadog polls metrics from AWS CloudWatch, the average latency is received as a single timeseries per Elastic Load Balancer (ELB).
Within Datadog, when you select min, max, or avg, you are controlling how multiple timeseries are combined. For example, requesting system.cpu.idle without any filter returns one series for each host that reports that metric, and those series need to be combined to be graphed. If instead you request system.cpu.idle from a single host, no aggregation is necessary and switching between average and max yields the same result.
See Space aggregation in the metric documentation for more information.
Reconcile the discrepancy

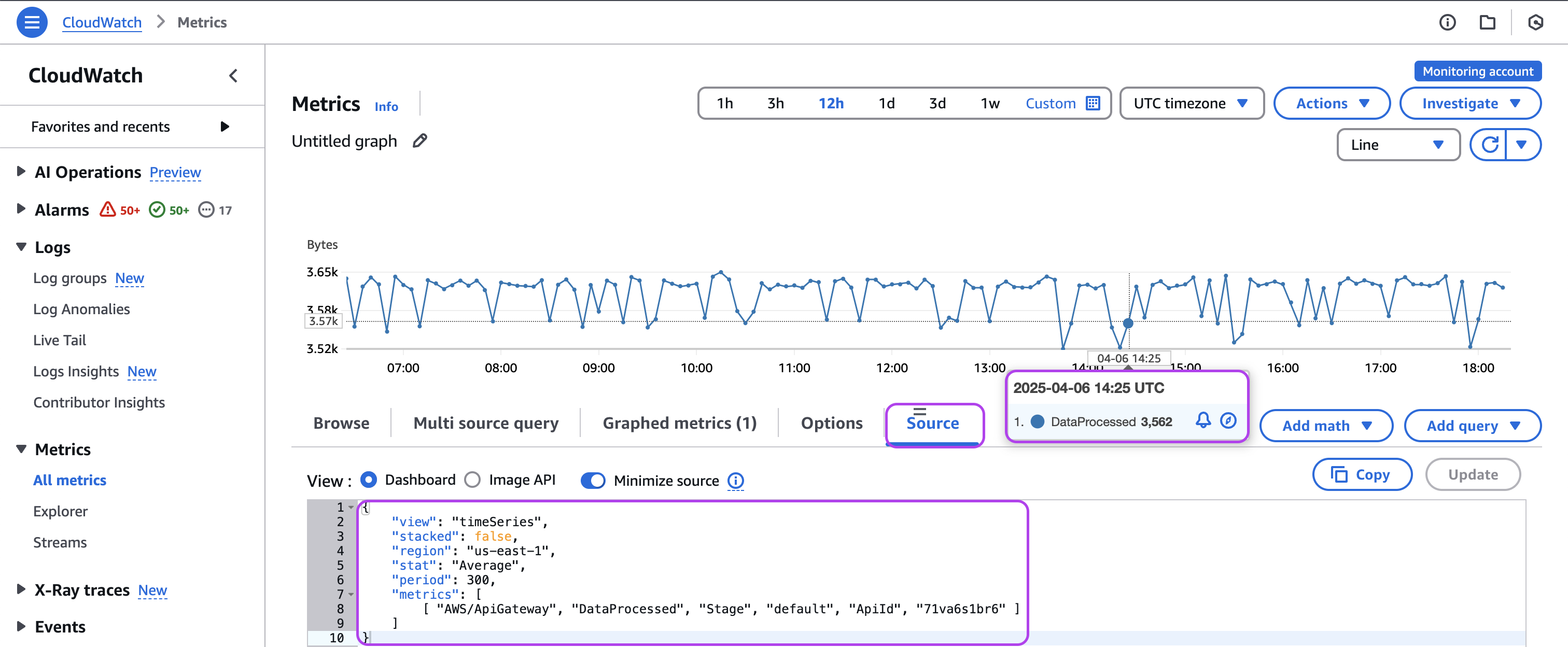

- Go to CloudWatch, and then All metrics.
- Search for and graph the metric.
- Select the Source tab to show the full metric query.
- Confirm that the query in CloudWatch is scoped identically to the query in Datadog:
- Any Dimensions used in the CloudWatch metric query should match tags used in the Datadog metric query
- Datadog queries metrics with one-minute granularity, so the Period of the CloudWatch metric query should also be set to one-minute precision
- Region
- Metric namespace and name
- Hover over a datapoint on the graph to display the timestamp and value.
- Find the same point in time in the Datadog graph and compare the values. If the values are equal, the original discrepancy was due to differences in either time or space aggregation between the two graphs.
Metrics
Metrics delayed
When using the AWS integration, Datadog pulls in your metrics through the CloudWatch API. You may see a slight delay in metrics from AWS due to some constraints that exist for their API.
The CloudWatch API only offers a metric-by-metric crawl to pull data. CloudWatch APIs have a rate limit that varies based on the combination of authentication credentials, region, and service. Metrics are made available by AWS dependent on the account level. For example, if you are paying for “detailed metrics” within AWS, they are available more frequently. This level of service for detailed metrics also applies to granularity, with some metrics being available per minute and others per five minutes.
Install the Datadog Agent on the host to avoid metric delay. See the Datadog Agent documentation to get started. Datadog has the ability to prioritize certain metrics within an account to pull them in faster, depending on the circumstances. Contact Datadog support for additional information.
Missing metrics
CloudWatch’s API returns only metrics with datapoints, so if for example an ELB has no attached instances, it is expected not to see metrics related to this ELB in Datadog.
Wrong count of aws.elb.healthy_host_count
When the cross-zone load balancing option is enabled on an ELB, all the instances attached to this ELB are considered part of all availability zones (on CloudWatch’s side). For example, if you have two instances in 1a and three instances in ab, the metric displays five instances per availability zone.
As this can be counter intuitive, the metrics aws.elb.healthy_host_count_deduped and aws.elb.un_healthy_host_count_deduped display the count of healthy and unhealthy instances per availability zone, regardless of if this cross-zone load balancing option is enabled or not.
Datadog UI
Duplicated hosts when installing the Agent
When installing the Agent on an AWS host, you might see duplicated hosts on the Datadog infrastructure page for a few hours if you manually set the hostname in the Agent’s configuration. The duplicate hosts disappear a few hours later, and does not affect your billing.
Datadog Agent
In containerized environments the problem might be that you have locked down the EC2 metadata endpoint, by way of assigning IAM roles/credentials to pods running in the Kubernetes cluster. Kube2IAM and kiam are common tools used to do this. To solve this, update your Kube2IAM or kiam configuration to allow access to this endpoint.
IMDSv2, in its default configuration, refuses connections with an IP hop count greater than one, that is, connections that have passed through an IP gateway. This can cause problems when the Agent is running in a container with a network other than the host’s network, as the runtime forwards the container’s traffic through a virtual IP gateway. This is common in ECS deployments. The following options may remedy this issue:
EC2 hostname with IMDS
Agent versions before 7.64.0
In some situations, the EC2 IMDSv2 configuration may make it impossible for the Agent to access the necessary metadata. This can cause the Agent to fall back to the os hostname provider instead of aws, as seen in the output of agent status.
The AWS API supports disabling IMDSv1, which the Agent uses by default. If this is the case, but IMDSv2 is enabled and accessible, set the parameter ec2_prefer_imdsv2 to true (defaults to false) in your Agent configuration. See the Transition to using Instance Metadata Service Version 2 documentation for details.
Upgrading to Datadog Agent 7.64.0+ should resolve these issues as the newer versions of the Agent use IMDSv2 by default.
Agent version 7.64.0 and after
Starting at v7.64.0, the Datadog Agent defaults to using IMDSv2 and falls back on IMDSv1 in case of failure. To revert to the previous behavior, set ec2_imdsv2_transition_payload_enabled to false in your host configuration.
See the Transition to using Instance Metadata Service Version 2 documentation for details.
You can use the AWS integration to collect data from CloudWatch, or install a Datadog Agent directly on each EC2 instance to get data and tags. If you have opted to use both of these methods to collect data, Datadog’s backend merges the data from both from the integration and the Datadog Agent to a single host object.
If you removed the AWS integration, but continue to run a Datadog Agent on your EC2 instances, the hosts in your Datadog account continues to have the old host-tags associated with it that were collected from AWS. This is intended behavior, and it does not indicate that the AWS integration or Amazon EC2 integration is still enabled.
You can verify the integration is enabled by checking the “Apps Running” for that host from the infrastructure list or by checking the metrics summary and creating a notebook scoped to that host.
By default, host-level tags remain permanently attached to AWS hosts. If you want to permanently remove AWS host tags from a host, you can do this by the following methods:
