Setting Up CSM Workload Security

Docs > Datadog Security > Cloud Security Management > Setting Up Cloud Security Management > Setting Up CSM Workload Security

The Cloud Security Management (CSM) Workload Security package includes CSM Threats. To learn more about the available CSM packages, see Setting up Cloud Security Management.

Prerequisites

Datadog Agent 7.44 or later.
Data collection is done using eBPF, so Datadog minimally requires platforms that have underlying Linux kernel versions of 4.15.0+ or have eBPF features backported. CSM Threats supports the following Linux distributions:
- Ubuntu LTS (18.04, 20.04, and 22.04)
- Debian 10 or later
- Amazon Linux 2 (kernels 4.15, 5.4, and 5.10) and 2023
- SUSE Linux Enterprise Server 12 and 15
- Red Hat Enterprise Linux 7, 8, and 9
- Oracle Linux 7, 8, and 9
- CentOS 7
- Custom kernel builds are not supported.
For compatibility with a custom Kubernetes network plugin like Cilium or Calico, see the Troubleshooting page.

Installation

Enable Remote Configuration

Remote Configuration for CSM Threats is in beta. If you have any feedback or questions, contact Datadog support.

Remote Configuration is a Datadog capability that allows you to remotely configure the behavior of Datadog resources deployed in your infrastructure. For CSM Threats, enabling Remote Configuration allows you to receive new and updated Agent rules automatically when they’re released.

To use Remote Configuration with CSM Threats, add the Remote Configuration scope to a new or existing API key, and then update your Datadog Agent configuration. See the Remote Configuration setup instructions for more information.

Note: Without Remote Configuration, Agent rules must be manually deployed to the Datadog Agent.

Configure the Agent

Follow the in-app instructions (recommended)

To enable CSM Workload Security on the Agent, navigate to the Cloud Security Management Setup page and click Hosts and containers.

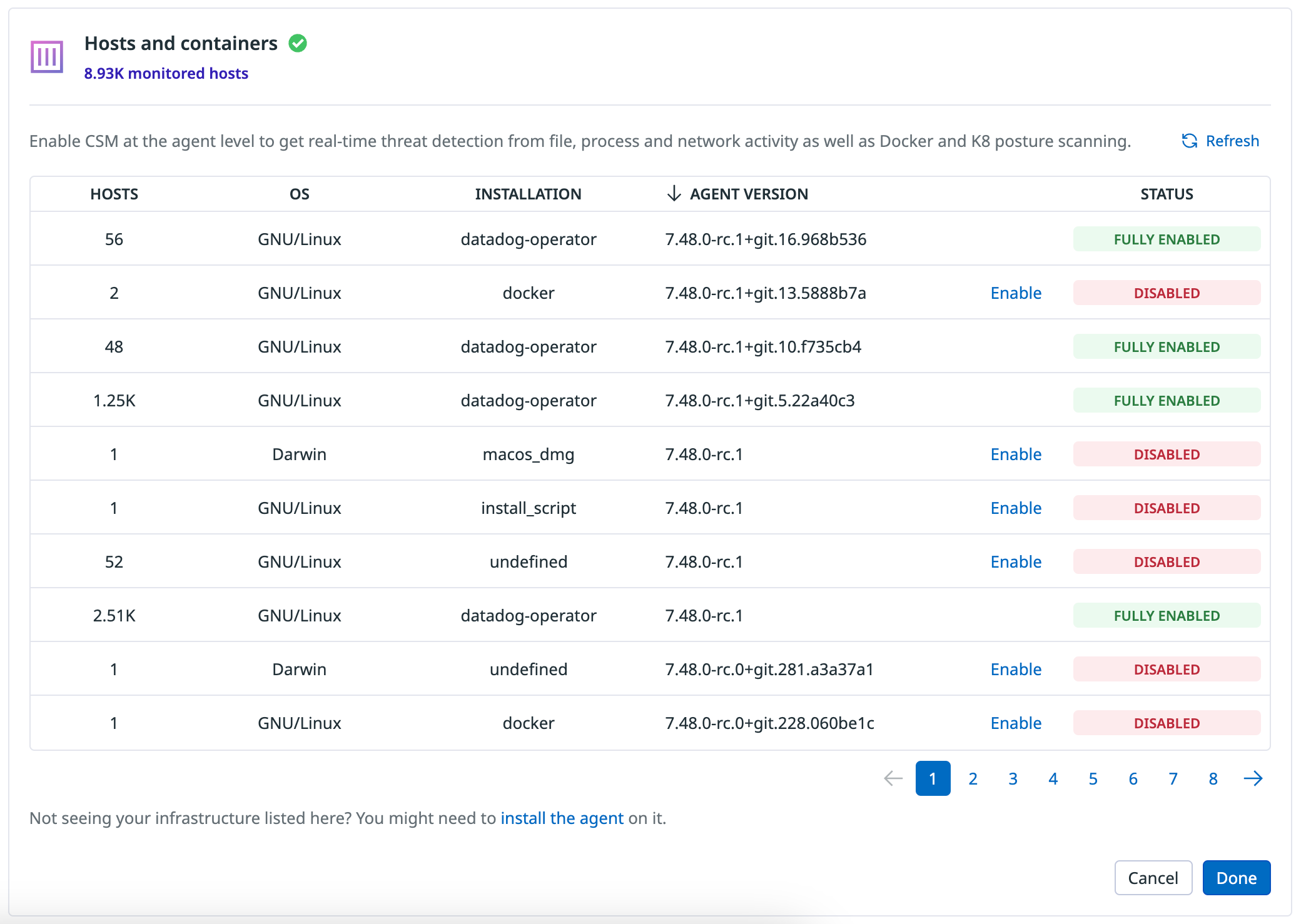

The Hosts and containers section on the Cloud Security Management Setup page

For each version of the Agent that is installed, click Enable and follow the step-by-step instructions to enable CSM Workload Security.

Alternatively, use the following examples to enable CSM Workload Security:

Add the following to the datadog section of the values.yaml file:

# values.yaml file
datadog:
  remoteConfiguration:
    enabled: true
  securityAgent:
    runtime:
      enabled: true

Optional: To enable Runtime Anomaly Detection, add the following to the values.yaml file:

# values.yaml file
datadog:
  securityAgent:
    runtime:
      securityProfile:
        enabled: true

Restart the Agent.

Add the following to the spec section of the values.yaml file:

# values.yaml file
spec:
  features:
    remoteConfiguration:
      enabled: true
    cws:
      enabled: true

Restart the Agent.

Use the following command to start the Runtime Security Agent and system-probe in a Docker environment:

docker-runtime-security.sh

docker run -d --name dd-agent \
  --cgroupns host \
  --pid host \
  --security-opt apparmor:unconfined \
  --cap-add SYS_ADMIN \
  --cap-add SYS_RESOURCE \
  --cap-add SYS_PTRACE \
  --cap-add NET_ADMIN \
  --cap-add NET_BROADCAST \
  --cap-add NET_RAW \
  --cap-add IPC_LOCK \
  --cap-add CHOWN \
  -v /var/run/docker.sock:/var/run/docker.sock:ro \
  -v /proc/:/host/proc/:ro \
  -v /sys/fs/cgroup/:/host/sys/fs/cgroup:ro \
  -v /etc/passwd:/etc/passwd:ro \
  -v /etc/group:/etc/group:ro \
  -v /:/host/root:ro \
  -v /sys/kernel/debug:/sys/kernel/debug \
  -v /etc/os-release:/etc/os-release \
  -e DD_RUNTIME_SECURITY_CONFIG_ENABLED=true \
  -e DD_RUNTIME_SECURITY_CONFIG_NETWORK_ENABLED=true \ # to enable the collection of CSM Threats network events
  -e DD_RUNTIME_SECURITY_CONFIG_REMOTE_CONFIGURATION_ENABLED=true \
  -e HOST_ROOT=/host/root \
  -e DD_API_KEY=<API KEY> \
  gcr.io/datadoghq/agent:7

Add the following settings to the env section of security-agent and system-probe in the daemonset.yaml file:

  # Source: datadog/templates/daemonset.yaml
  apiVersion:app/1
  kind: DaemonSet
  [...]
  spec:
  [...]
  spec:
      [...]
        containers:
        [...]
          - name: agent
            [...]
            env:
              - name: DD_REMOTE_CONFIGURATION_ENABLED
                value: "true"
          - name: system-probe
            [...]
            env:
              - name: DD_RUNTIME_SECURITY_CONFIG_ENABLED
                value: "true"
              - name: DD_RUNTIME_SECURITY_CONFIG_REMOTE_CONFIGURATION_ENABLED
                value: "true"
          [...]

For a package-based deployment, install the Datadog package with your package manager, and then update the datadog.yaml, security-agent.yaml, and system-probe.yaml files.

By default, Runtime Security is disabled. To enable it, both the security-agent.yaml and system-probe.yaml files need to be updated.

# /etc/datadog-agent/datadog.yaml file
remote_configuration:
  ## @param enabled - boolean - optional - default: false
  ## Set to true to enable remote configuration.
  enabled: true

runtime_security_config:
  ## @param enabled - boolean - optional - default: false
  ## Set to true to enable full CSM Threats.
  enabled: true

# /etc/datadog-agent/security-agent.yaml file
runtime_security_config:
  ## @param enabled - boolean - optional - default: false
  ## Set to true to enable full CSM Threats.
  enabled: true

# /etc/datadog-agent/system-probe.yaml file
runtime_security_config:
  ## @param enabled - boolean - optional - default: false
  ## Set to true to enable full CSM Threats.
  enabled: true

  remote_configuration:
    ## @param enabled - boolean - optional - default: false
    enabled: true

Optional: To enable Runtime Anomaly Detection, add the following to the system-probe.yaml file:

# /etc/datadog-agent/system-probe.yaml file
runtime_security_config:
  security_profile:
    ## @param enabled - boolean - optional - default: false
    ## Set to true to enable Runtime Anomaly Detection.
    enabled: true

The following deployment can be used to start the Runtime Security Agent and system-probe in an AWS Elastic Beanstalk environment with multiple Docker containers:

{
    "AWSEBDockerrunVersion": 2,
    "volumes": [
        {
            "name": "docker_sock",
            "host": {
                "sourcePath": "/var/run/docker.sock"
            }
        },
        {
            "name": "proc",
            "host": {
                "sourcePath": "/proc/"
            }
        },
        {
            "name": "cgroup",
            "host": {
                "sourcePath": "/cgroup/"
            }
        },
        {
            "name": "debug",
            "host": {
                "sourcePath": "/sys/kernel/debug"
            }
        },
        {
           "name": "os_release",
           "host": {
                "sourcePath": "/etc/os-release"
        }
        },
        {
           "name": "etc_passwd",
           "host": {
             "sourcePath": "/etc/passwd"
           }
        },
        {
           "name": "etc_group",
           "host": {
             "sourcePath": "/etc/group"
           }
        }
    ],
    "containerDefinitions": [
        {
            "image": "gcr.io/datadoghq/agent:7",
            "environment": [
                {
                    "name": "DD_API_KEY",
                    "value": "<YOUR_DD_API_KEY>"
                },
                {
                    "name": "DD_SITE",
                    "value": "<YOUR_DD_SITE>"
                },
                {
                    "name": "DD_TAGS",
                    "value": "<SIMPLE_TAG>, <KEY:VALUE_TAG>"
                },
                {
                   "name": "DD_RUNTIME_SECURITY_CONFIG_ENABLED",
                   "value": "true"
                },
                {
                    "name": "DD_REMOTE_CONFIGURATION_ENABLED",
                    "value": "true"
                },
                {
                    "name": "DD_RUNTIME_SECURITY_CONFIG_REMOTE_CONFIGURATION_ENABLED",
                    "value": "true"
                }
            ],
            "memory": 256,
            "dockerSecurityOptions": ["apparmor:unconfined"],
            "linuxParameters": {
             "capabilities": {
               "add": [
                 "SYS_ADMIN",
                 "SYS_RESOURCE",
                 "SYS_PTRACE",
                 "NET_ADMIN",
                 "NET_BROADCAST",
                 "NET_RAW",
                 "IPC_LOCK",
                 "CHOWN"
               ]
              }
            },
            "mountPoints": [
                {
                    "sourceVolume": "docker_sock",
                    "containerPath": "/var/run/docker.sock",
                    "readOnly": false
                },
                {
                    "sourceVolume": "proc",
                    "containerPath": "/host/proc",
                    "readOnly": true
                },
                {
                    "sourceVolume": "cgroup",
                    "containerPath": "/host/sys/fs/cgroup",
                    "readOnly": true
                },
                {
                    "containerPath": "/sys/kernel/debug",
                    "sourceVolume": "debug"
                },
                {
                    "sourceVolume": "os_release",
                    "containerPath": "/host/etc/os-release",
                    "readOnly": false
                },
                {
                    "sourceVolume": "etc_passwd",
                    "containerPath": "/etc/passwd",
                    "readOnly": false
                },
                {
                    "sourceVolume": "etc_group",
                    "containerPath": "/etc/group",
                    "readOnly": false
                }
            ]
        }
    ]
}
