The fastest way to configure Storage Monitoring is through the Enable Buckets page, where you can enable S3 inventory and configure monitoring for multiple buckets at once.

As an alternative, you can set up S3 inventory manually or with Terraform and enable Storage Monitoring using your existing setup. For details, see Existing S3 Inventory.

1. Enable Amazon S3 Integration and Resource collection for all the AWS accounts you want to monitor.

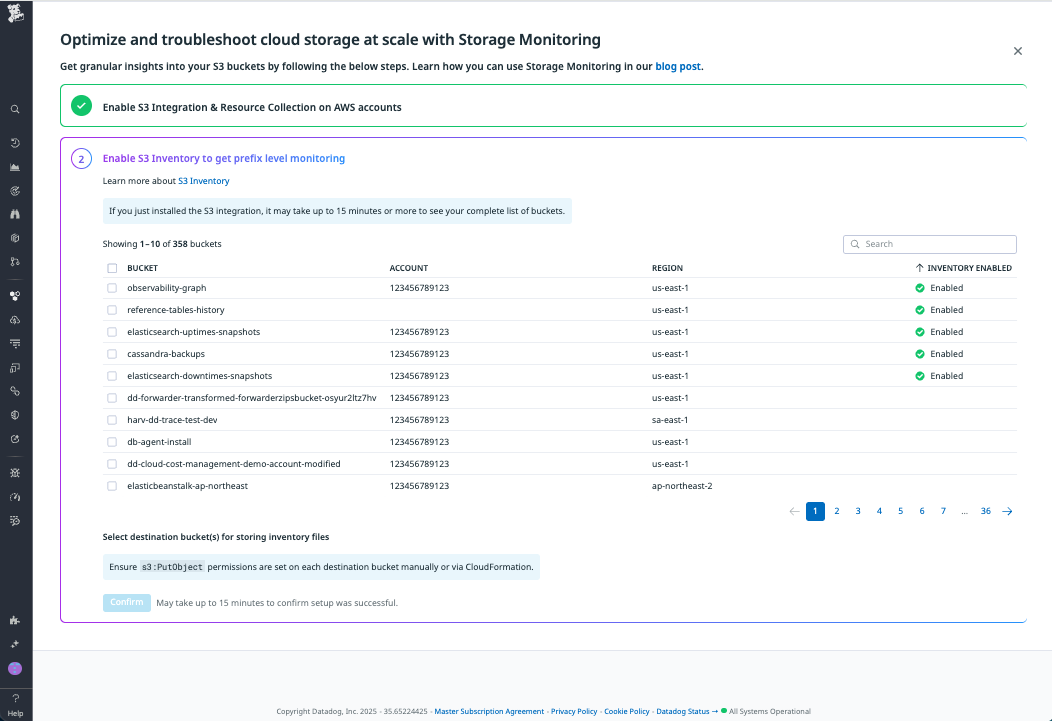

2. Enable S3 Inventory to get prefix level monitoring.

   - Source bucket: The S3 bucket you want to monitor with Storage Monitoring
   - Destination bucket: Used to store inventory reports (one per AWS region, can be reused cross-account)

   1. Add the following permissions to your Datadog IAM policy so Datadog can enable S3 inventory on your source buckets and read the generated reports from the destination buckets:

      • s3:PutInventoryConfiguration
      • s3:GetObject (scoped to the destination bucket(s))
      • s3:ListBucket (scoped to the destination bucket(s))

      Example IAM policy:

            {
              "Version": "2012-10-17",
              "Statement": [

                {
                  "Sid": "AllowDatadogToEnableInventory",
                  "Effect": "Allow",
                  "Action": [
                    "s3:PutInventoryConfiguration" // If you want Datadog to enable S3 inventory through Datadog UI
                  ],
                  "Resource": "arn:aws:s3:::storage-monitoring-source-bucket" // source bucket(s)
                },
                { // destination bucket
                  "Sid": "AllowDatadogToReadInventoryFiles",
                  "Effect": "Allow",
                  "Action": [
                    "s3:GetObject",
                    "s3:ListBucket"
                  ],
                  "Resource": [
                    "arn:aws:s3:::storage-monitoring-inventory-destination",
                    "arn:aws:s3:::storage-monitoring-inventory-destination/*" // destination bucket(s)/prefix
                  ]
                }
              ]
            }

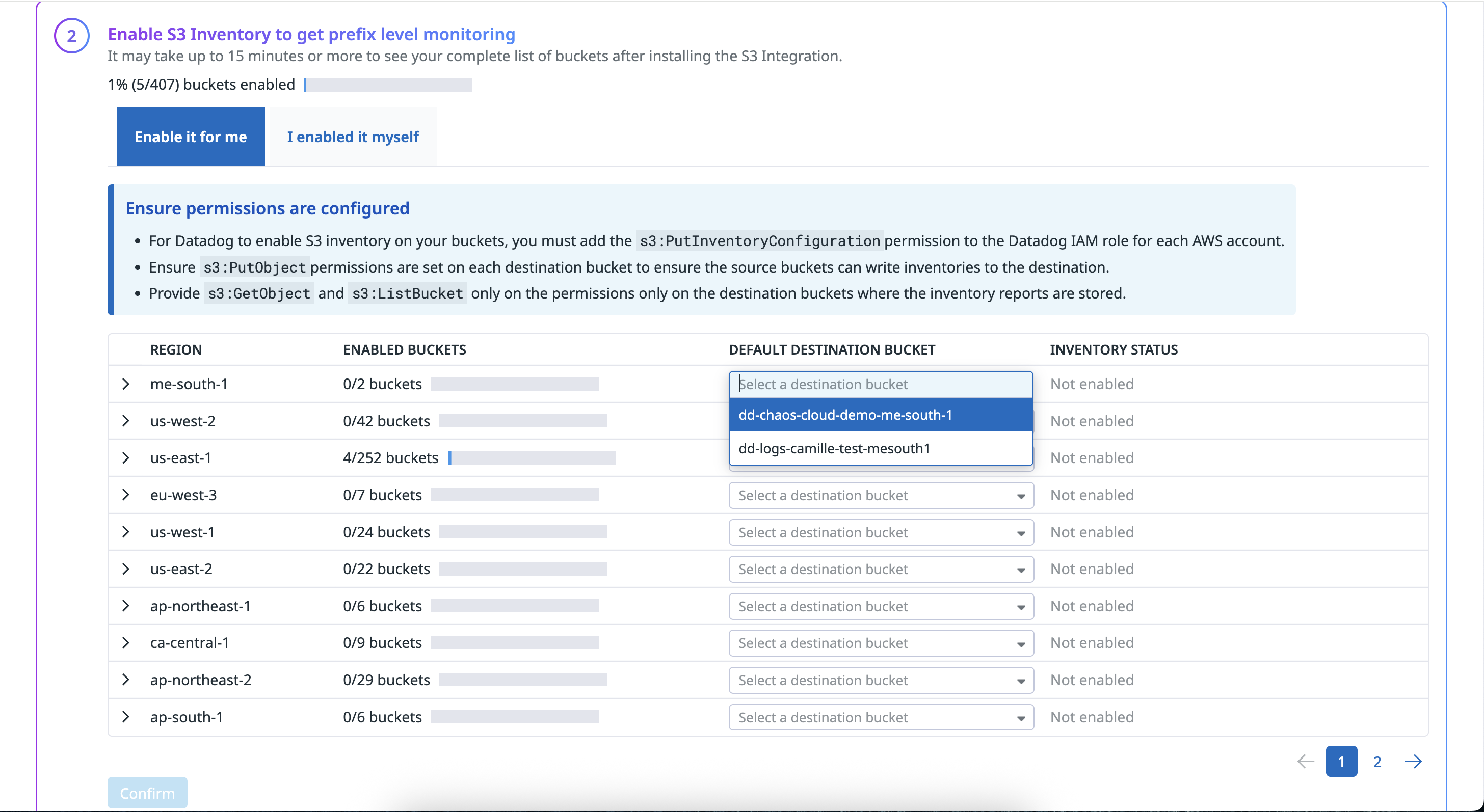

   2. On the Enable it for me tab, select the regions or accounts you want to enable and assign a destination bucket per region or per account to store S3 Inventory reports. You can either use an existing bucket or create one in AWS.

      The destination buckets must allow the source buckets to write inventory data. See Creating a destination bucket policy. in the AWS documentation for details.

   3. Complete the inventory configuration. The first inventory report may take up to 24 hours to generate.

3. Enable S3 Access Logs for prefix-level request and latency metrics: To get prefix-level access metrics including request counts, server-side latency, and cold data identification for cost optimization, follow these additional steps:

   1. Set up the Datadog Lambda Forwarder (if not already configured):

      • Follow the Datadog Forwarder installation instructions to deploy the Datadog Lambda function in your AWS account
      • This Lambda function collects and forwards your S3 access logs to Datadog

   2. Configure S3 Access Logs for each source bucket:

      • Go to your S3 bucket properties in the AWS Console
      • Navigate to Server access logging
      • Enable logging and specify your destination bucket (for simplicity, you can use the destination bucket for your inventory files)
      • Set the target prefix to access-logs/ to organize log files separately from inventory data

   3. Set up the Lambda trigger:

      Option A: Automatic (Recommended)

      • In the Datadog AWS integration page, navigate to the Log Collection tab
      • Enable automatic log collection for S3 by checking the S3 Access Logs checkbox
      • Datadog automatically configures triggers on your Forwarder Lambda function for S3 access logs

      Option B: Manual

      • In the AWS console, go to your Datadog Forwarder Lambda function
      • Click Add trigger and select S3
      • Select the bucket containing your access logs
      • Set the event type to All object create events
      • Set the prefix to access-logs/ (matching your access log prefix)
      After sending, S3 Access Logs are also available in Datadog Log Management..

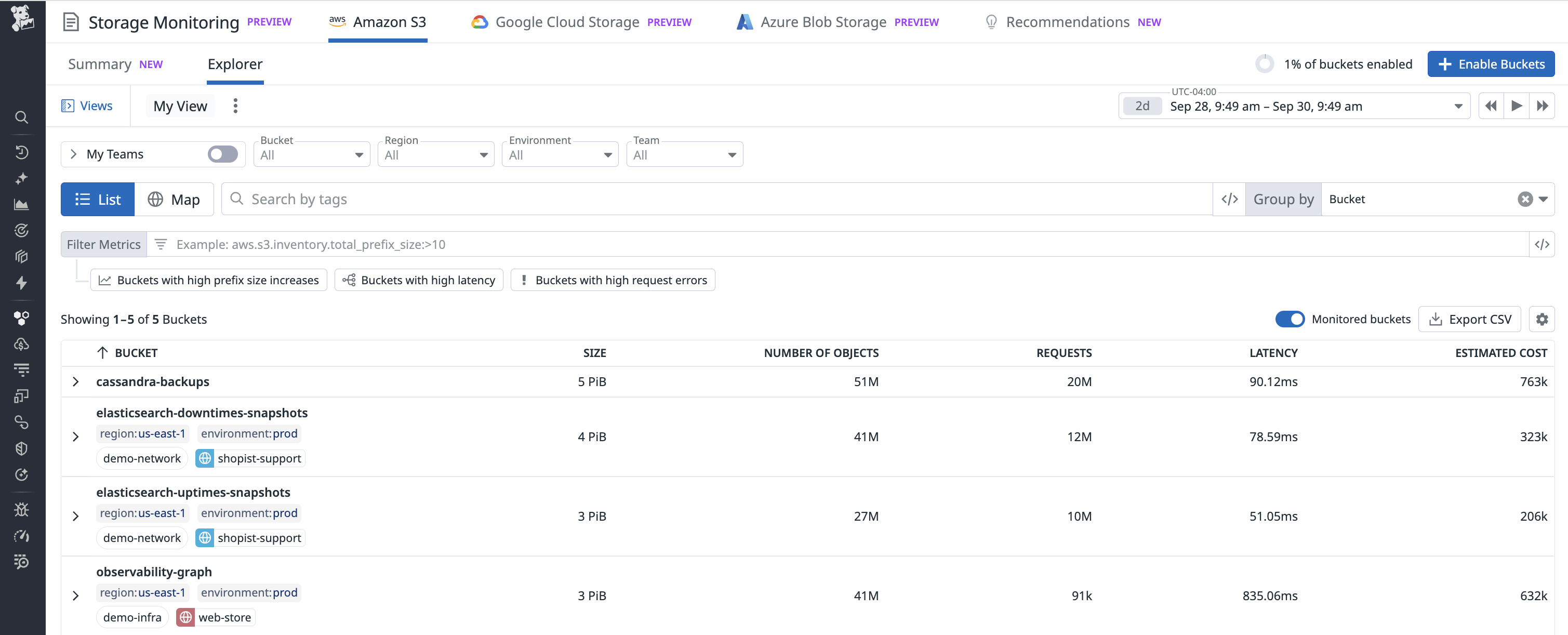

4. Return to Infrastructure > Storage Monitoring to see any new buckets. The inventory generation process starts in AWS within 24 hours of the first report. Data from your buckets is visible after this period.

You can also set up Storage Monitoring using the provided CloudFormation templates. This process involves two steps:

Step 1: Configure inventory generation

This template configures your existing S3 bucket to generate inventory reports, which Datadog uses to generate detailed metrics about your bucket prefixes.

1. Download the source-bucket-inventory-cfn.yaml template.

2. In AWS CloudFormation, click Create stack in the top right corner and select With existing resources (import resources).

3. In the Specify template step, select Upload a template file.

4. Click Choose file and select the source-bucket-inventory-cfn.yaml file, then click Next.

5. Enter the bucket name you want AWS to start generating inventories for, and click Next.

6. Fill in the required parameters:

   • DestinationBucketName: The bucket for storing inventory files. Note: You must only use one destination bucket for all inventory files generated in an AWS account.
   • SourceBucketName: The bucket you want to monitor and start generating inventory files for

   Optional parameters:

   • SourceBucketPrefix: (Optional) Limit monitoring to a specific path in the source bucket
   • DestinationBucketPrefix: Specific path within the destination bucket. Ensure this path doesn’t include trailing slashes (/)

7. Click Next.
8. Wait for AWS to locate your source bucket, and click Import resources in the bottom right corner.

Note: This CloudFormation template can be rolled back, but rolling back doesn’t delete the created resources. This is to ensure the existing bucket doesn’t get deleted. You can manually delete the inventory configurations by going on the Management tab in the bucket view.

Note: Review Amazon S3 pricing for costs related to inventory generation.

Step 2: Configure required permissions

This template creates two IAM policies:

• A policy to allow Datadog to read inventory files from the destination bucket
• A policy to allow your source bucket to write inventory files to the destination bucket

1. Download the cloud-inventory-policies-cfn.yaml template.

2. In AWS CloudFormation, click Create stack in the top right corner and select With new resources (standard).

3. In the Specify template step, select Upload a template file.

4. Click Choose file and select the cloud-inventory-policies-cfn.yaml file, then click Next.

5. Fill in the required parameters:

   • DatadogIntegrationRole: Your Datadog AWS integration role name
   • DestinationBucketName: The name of the bucket that receives your inventory files. Note: You must only use one destination bucket for all inventory files generated in an AWS account.
   • SourceBucketName: The name of the bucket you want to start generating inventory files for

   Optional parameters:

   • SourceBucketPrefix: This parameter limits the inventory generation to a specific prefix in the source bucket

   • DestinationBucketPrefix: If you want to reuse an existing bucket as the destination, this parameter allows the inventory files to be shipped to a specific prefix in that bucket. Ensure that any prefixes do not include trailing slashes (/)

6. On the Review and create step, verify the parameters have been entered correctly, and click Submit.

Finish setting up S3 buckets for Storage Monitoring

After completing the CloudFormation setup, enable buckets for Storage Monitoring from the Datadog UI:

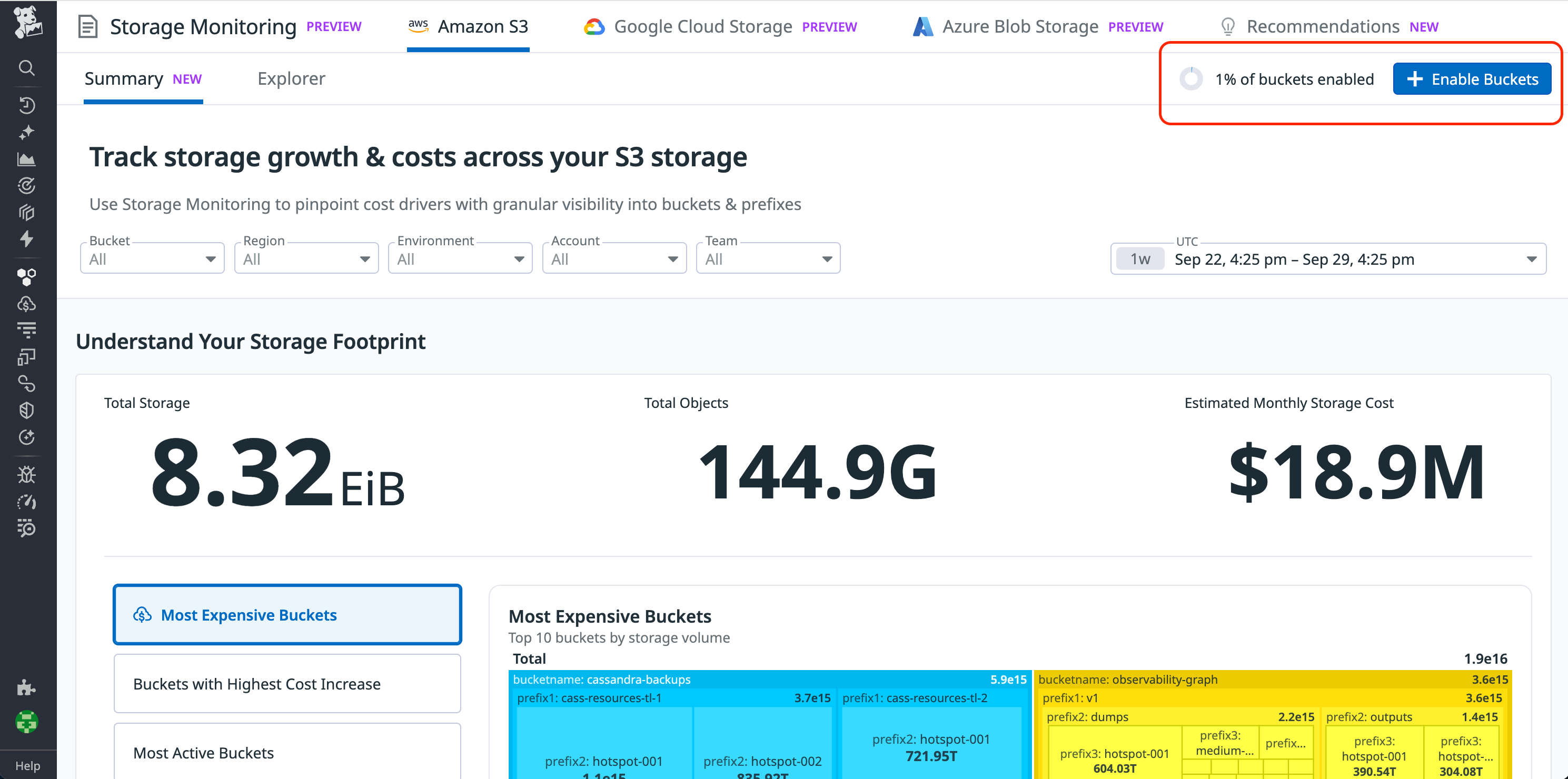

• Navigate to Storage Monitoring → Enable Buckets
• In Step 2: Enable S3 Inventory to get prefix level monitoring, select I enabled it myself
• Choose the destination buckets that contain the inventory files for the source buckets you want to monitor and click Confirm

You can use the Terraform aws_s3_bucket_inventory resource to enable S3 Inventory.

The following example shows how to enable daily inventory on an S3 bucket for Datadog monitoring. To use this example:

• Replace <MY_MONITORED_BUCKET> with the name of the bucket to be monitored.
• Replace <MY_INVENTORY_DESTINATION> with the name of the bucket that receives your inventory files.
• Replace <DESTINATION_ACCOUNT_ID> with the AWS account ID that owns the destination bucket.

resource "aws_s3_bucket" "monitored" {
  bucket = "<MY_MONITORED_BUCKET>"
}

resource "aws_s3_bucket" "inventory_destination" {
  bucket = "<MY_INVENTORY_DESTINATION>"
}

resource "aws_s3_bucket_inventory" "daily_inventory" {
  bucket = aws_s3_bucket.monitored.id
  name   = "datadog-daily-inventory"


  included_object_versions = "All"
  schedule {
    frequency = "Daily"
  }
  destination {
    bucket {
      account_id = "<DESTINATION_ACCOUNT_ID>"
      bucket_arn = aws_s3_bucket.inventory_destination.arn
      format     = "CSV"
      prefix     = "datadog-inventory/"
    }
  }
  optional_fields = [
    "Size",
    "StorageClass",
    "LastModifiedDate",
    "ETag",
    "IsMultipartUploaded",
    "ReplicationStatus",
    "EncryptionStatus",
    "ObjectLockRetainUntilDate",
    "ObjectLockMode",
    "ObjectLockLegalHoldStatus",
    "IntelligentTieringAccessTier",
    "BucketKeyStatus",
    "ChecksumAlgorithm",
    "ObjectAccessControlList",
    "ObjectOwner"
  ]
}

Notes:

• The destination bucket can be your source bucket, but for security and logical separation, many organizations use a separate bucket.
• The optional_fields section is required for Datadog prefix metrics and cost optimization insights like duplicate objects.

Finish setting up S3 buckets for Storage Monitoring

After the inventory configuration is set up and your inventory files begin appearing in the destination bucket, enable buckets for Storage Monitoring from the Datadog UI:

• Navigate to Storage Monitoring → Enable Buckets

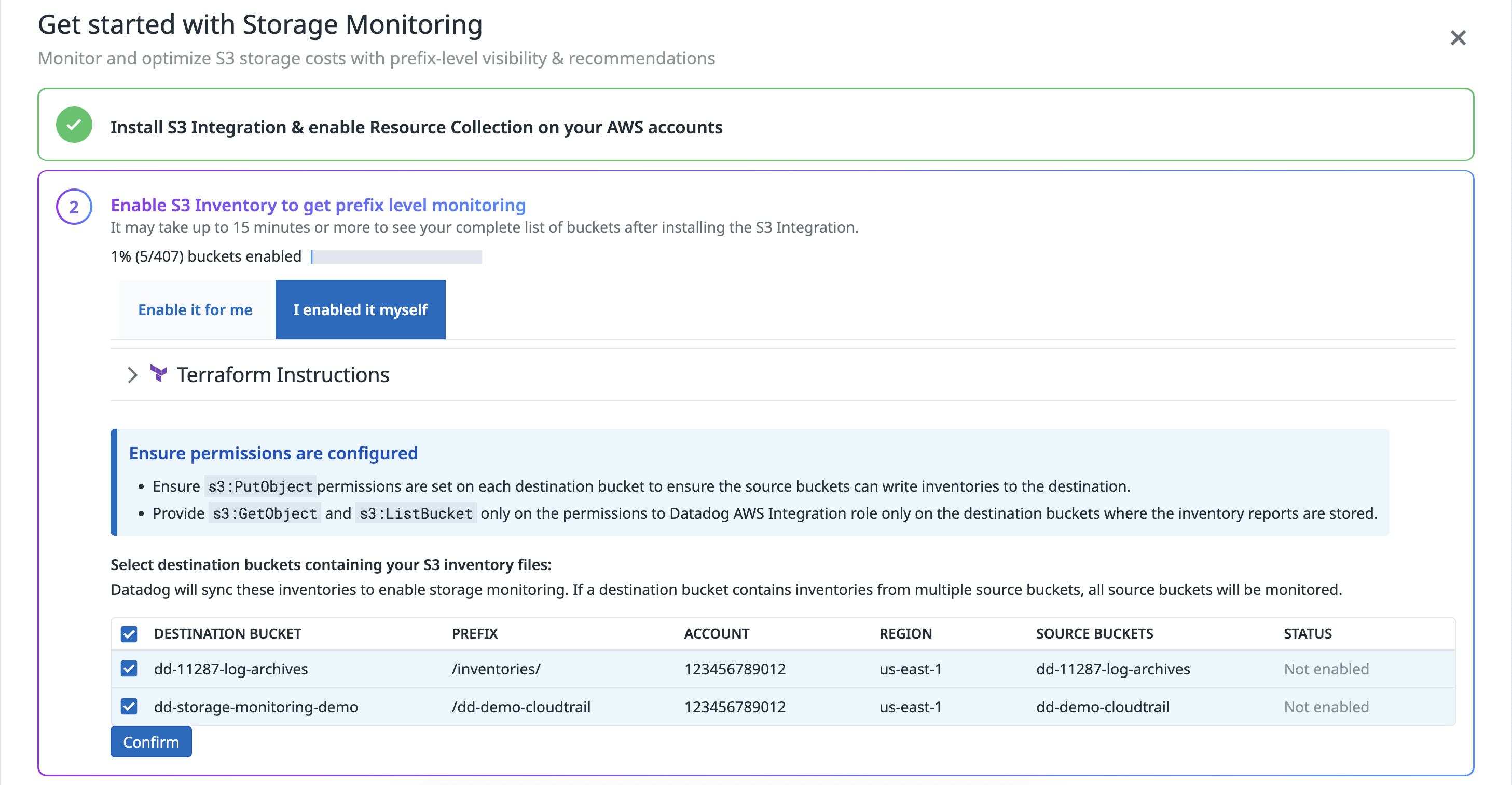

• In Step 2: Enable S3 Inventory to get prefix level monitoring, select I enabled it myself
• Choose the destination buckets that contain the inventory files for the source buckets you want to monitor and click Confirm

Use modules for complex setups

If you need to manage multiple buckets, complex inventory policies, encryption, or cross-account setups, you can use the terraform-aws-s3-bucket module.

Troubleshooting

• S3 Inventory files are delivered daily, and may take up to 24 hours to appear after setup.
• Ensure IAM permissions allow S3 to write inventory files to your destination bucket.
• If cross-account access is needed, confirm that the inventory destination prefix (datadog-inventory/ in the example) is correct and accessible to Datadog.

To manually set up the required Amazon S3 Inventory and related configuration, follow these steps:

Step 1: Create a destination bucket

1. Create an S3 bucket to store your inventory files. This bucket acts as the central location for inventory reports. Note: You must only use one destination bucket for all inventory files generated in an AWS account.
2. Create a prefix within the destination bucket (optional).

Step 2: Configure the bucket and integration role policies

1. Ensure the Datadog AWS integration role has s3:GetObject and s3:ListBucket permissions on the destination bucket. These permissions allow Datadog to read the generated inventory files.

2. Follow the steps in the Amazon S3 user guide to add a bucket policy to your destination bucket allowing write access (s3:PutObject) from your source buckets.

Step 3: Configure inventory generation

For each bucket you want to monitor:

1. Go to the Amazon S3 buckets page in the AWS console, and select the bucket.
2. Navigate to the bucket’s Management tab.
3. Click Create inventory configuration.
4. Configure the following settings:

• Set a configuration name
• (Optional) Specify a source bucket prefix

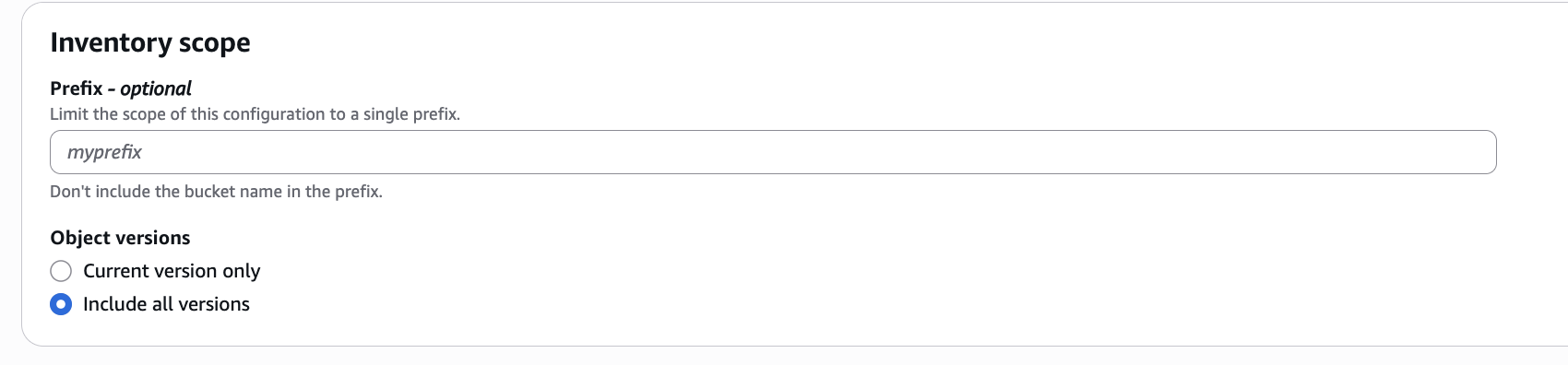

• Object versions: Datadog recommends selecting Current Versions Only
• Destination: Select the common destination bucket for inventory files in your AWS account. For example, if the bucket is named destination-bucket, enter s3://your-destination-bucket Note: If you want to use a prefix on the destination bucket, add this as well
• Frequency: Datadog recommends choosing Daily. This setting determines how often your prefix-level metrics are updated in Datadog
• Output format: CSV
• Status: Enabled
• Server-side encryption: Don’t specify an encryption key

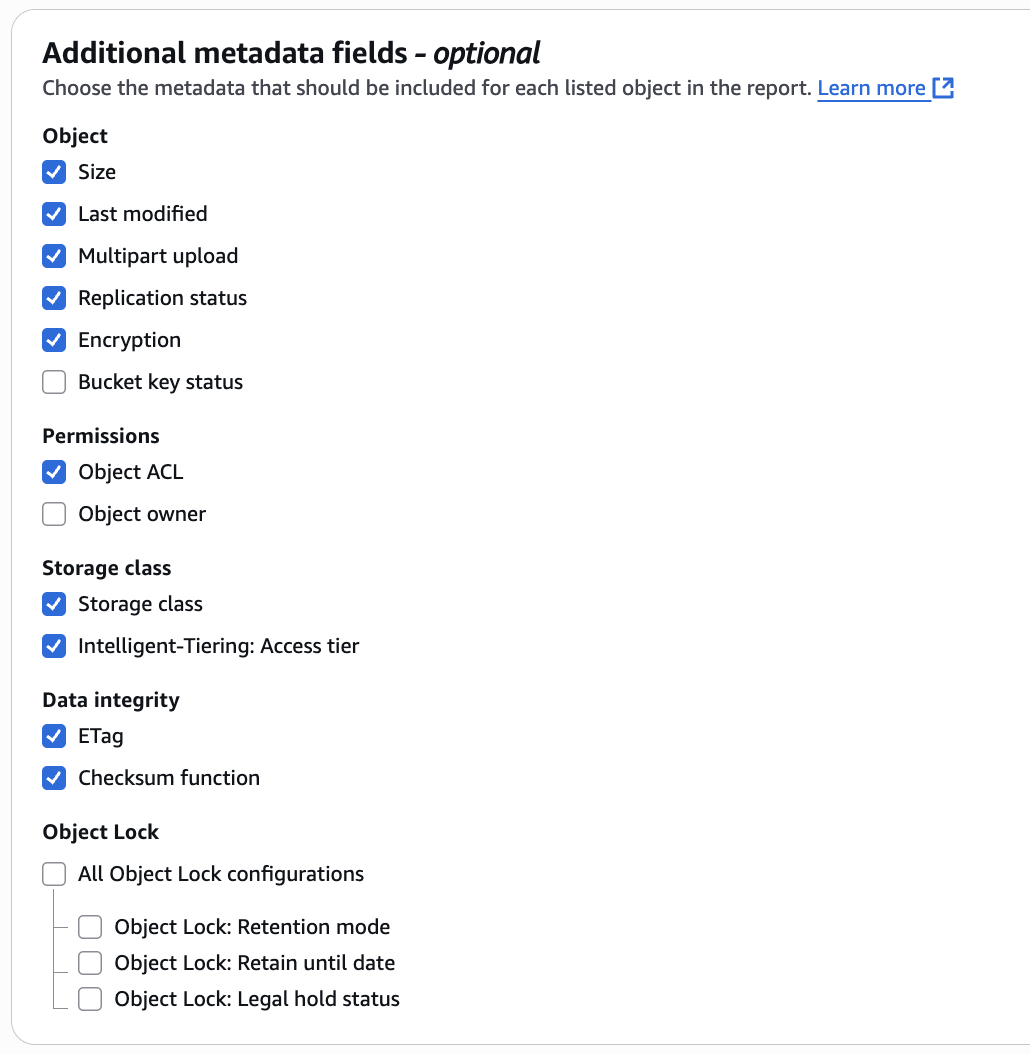

• Select all the available Additional metadata fields

Note: Review Amazon S3 pricing for costs related to inventory generation.

Post-setup steps

After the inventory configuration is set up and your inventory files begin appearing in the destination bucket, enable buckets for Storage Monitoring from the Datadog UI:

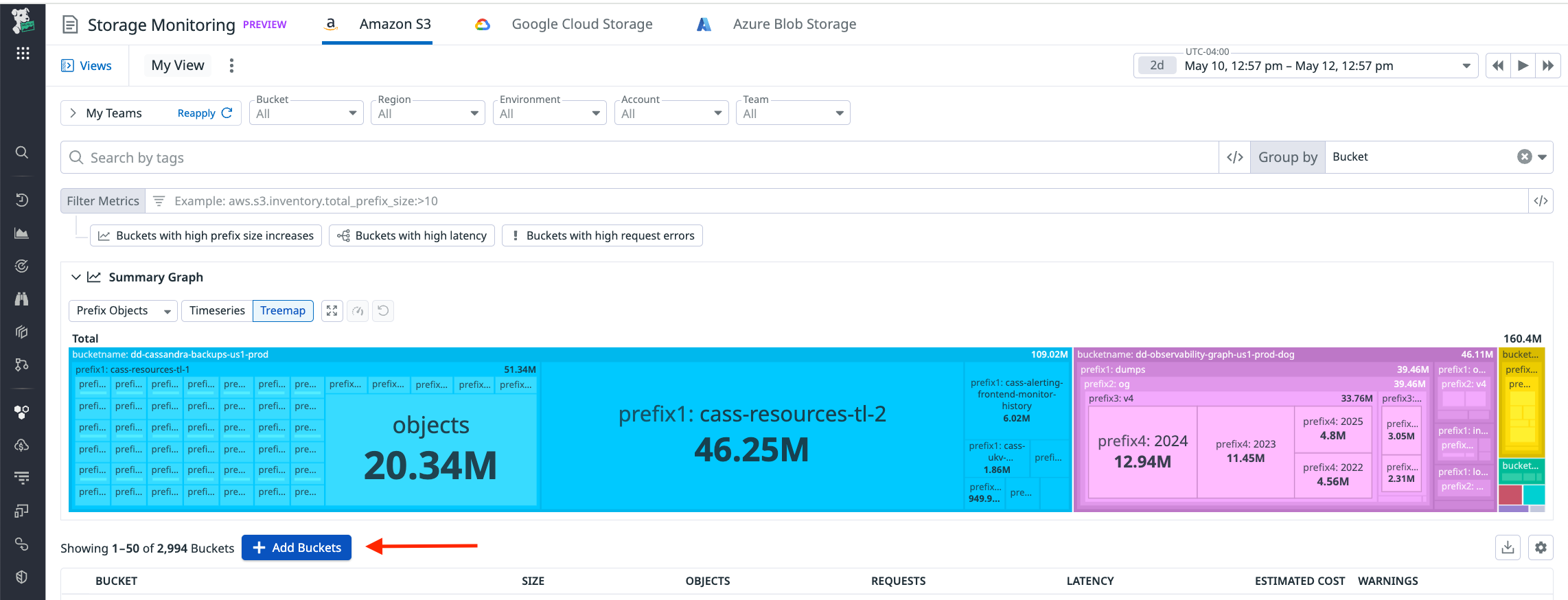

• Navigate to Storage Monitoring → Enable Buckets
• In Step 2: Enable S3 Inventory to get prefix level monitoring, select I enabled it myself
• Choose the destination buckets that contain the inventory files for the source buckets you want to monitor and click Confirm

If you have already configured S3 Inventory for the buckets you want to monitor, enable buckets for Storage Monitoring from the Datadog UI: - Navigate to Storage Monitoring → Enable Buckets

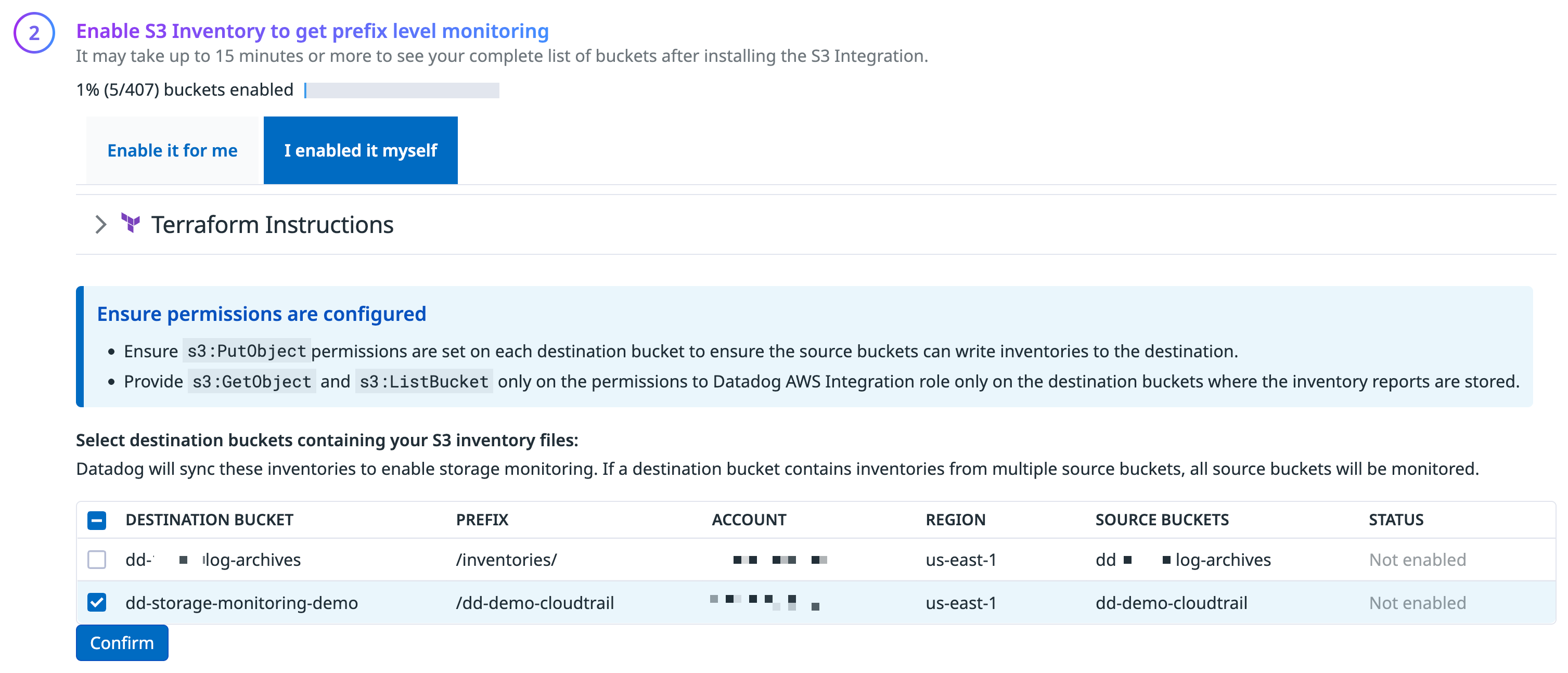

• In Step 2: Enable S3 Inventory to get prefix level monitoring, select I enabled it myself
  • Choose the destination buckets that contain the inventory files for the source buckets you want to monitor and click Confirm

Use the Google Cloud CLI to run the following command:

gcloud storage insights inventory-reports create <SOURCE_BUCKET_URL> \
  --no-csv-header \
  --display-name=datadog-storage-monitoring \
  --destination=gs://<DESTINATION_BUCKET>/<SOURCE_BUCKET>/{{date}}> \
  --metadata-fields=project,bucket,name,size,updated,storageClass \
  --schedule-starts=<YYYY-MM-DD> \
  --schedule-repeats=<DAILY|WEEKLY> \
  --schedule-repeats-until=<YYYY-MM-DD>

Copy the following Terraform template, substitute the necessary arguments, and apply it in the Google Cloud project that contains your bucket.

locals {
  source_bucket      = "" # The name of the bucket you want to monitor
  destination_bucket = "" # The bucket where inventory reports are written
  frequency          = "" # Possible values: Daily, Weekly (report generation frequency)
  location           = "" # The location of your source and destination buckets
}

data "google_project" "project" {
}

resource "google_storage_insights_report_config" "config" {
  display_name = "datadog-storage-monitoring"
  location     = local.location
  frequency_options {
    frequency = local.frequency
    start_date {
      day   = "" # Fill in the day
      month = "" # Fill in the month
      year  = "" # Fill in the year
    }
    end_date {
      day   = "" # Fill in the day
      month = "" # Fill in the month
      year  = "" # Fill in the year
    }
  }
  csv_options {
    record_separator = "\n"
    delimiter        = ","
    header_required  = false
  }
  object_metadata_report_options {
    metadata_fields = ["bucket", "name", "project", "size", "updated", "storageClass"]
    storage_filters {
      bucket = local.source_bucket
    }
    storage_destination_options {
      bucket           = google_storage_bucket.report_bucket.name
      destination_path = "${local.source_bucket}/{{date}}"
    }
  }

  depends_on = [
    google_storage_bucket_iam_member.admin
  ]
}

resource "google_storage_bucket" "report_bucket" {
  name                        = local.destination_bucket
  location                    = local.location
  force_destroy               = true
  uniform_bucket_level_access = true
}

resource "google_storage_bucket_iam_member" "admin" {
  bucket = google_storage_bucket.report_bucket.name
  role   = "roles/storage.admin"
  member = "serviceAccount:service-${data.google_project.project.number}@gcp-sa-storageinsights.iam.gserviceaccount.com"
}

You can allow Datadog to handle the inventory report configuration by providing the proper permissions to your service account:

1. Navigate to IAM & Admin -> Service accounts
2. Find your Datadog service account and add the roles/storageinsights.Admin role
3. Navigate to the source bucket you want to monitor and grant these permissions:
   • roles/storage.insightsCollectorService
   • roles/storage.ObjectViewer
4. Navigate to the destination bucket and grant these permissions:
   • roles/storage.objectCreator
   • roles/storage.insightsCollectorService

Alternatively, you can create a custom role specifically for Datadog with these required permissions:

storage.buckets.get
storage.objects.list
storage.buckets.getObjectInsights
storage.buckets.get
storage.objects.create
storageinsights.reportConfigs.get
storageinsights.reportConfigs.create
storageinsights.reportConfigs.list
storageinsights.reportConfigs.update
storage.objects.get
storageinsights.reportDetails.get
storageinsights.reportDetails.list

After granting the necessary permissions, Datadog can create the inventory report configuration with your setup details.

Enable inventories for the selected storage accounts in each subscription by running the following script in your Azure Cloud Shell:

curl https://datadogstoragemonitoring.blob.core.windows.net/scripts/install.sh \
  | bash -s -- <CLIENT_ID> <SUBSCRIPTION_ID> <COMMA_SEPARATED_STORAGE_ACCOUNT_NAMES>

Before running the script, set your shell environment to Bash and replace the various placeholder inputs with the correct values:

• <CLIENT_ID>: The client ID of an App Registration already set up using the Datadog Azure integration
• <SUBSCRIPTION_ID>: The subscription ID of the Azure subscription containing the storage accounts
• <COMMA_SEPARATED_STORAGE_ACCOUNT_NAMES>: A comma-separated list of the storage accounts you want to monitor (for example, storageaccount1,storageaccount2)

For Each Storage Account you wish to monitor, follow all of the steps here:

Create a blob inventory policy

1. In the Azure portal, navigate to your Storage Account.
2. Go to Data management > Blob inventory.
3. Click Add.
4. Configure the policy:
   • Name: datadog-storage-monitoring
   • Destination container:
     • Click Create new, and enter the name datadog-storage-monitoring.
   • Object type to inventory: Blob
   • Schedule: Daily
   • Blob types: Select Block blobs, Append blobs, and Page blobs.
   • Subtypes: Select Include blob versions
   • Schema fields: Select All, or ensure that at least the following are selected:
     • Name
     • Access tier
     • Last modified
     • Content length
     • Server encrypted
     • Current version status
     • Version ID
   • Exclude prefix: datadog-storage-monitoring
5. Click Add.

Add the role assignment

1. In the Azure portal, navigate to your Storage Account.
2. Go to Data storage > Containers.
3. Click on the datadog-storage-monitoring container.
4. Click on Access control (IAM) in the left-hand menu.
5. Click Add > Add role assignment.
6. Fill out the role assignment:
   • Role: Select Storage Blob Data Reader. Click Next.
   • Assign access to: User, group, or service principal.
   • Members: Click + Select members and search for your App Registration by its name and select it.
   • Note: This should be an App Registration set up in the Datadog Azure integration. Keep in mind the Client ID for later.
7. Click Review + assign.
