DogStatsD

This page explains what DogStatsD is, how it works, and what data it accepts.

The easiest way to get your custom application metrics into Datadog is to send them to DogStatsD, a metrics aggregation service bundled with the Datadog Agent. DogStatsD implements the StatsD protocol and adds a few Datadog-specific extensions:

Histogram metric type
Service checks and Events
Tagging

Note: DogStatsD does NOT implement the following from StatsD:

Gauge deltas (see this issue)
Timers as a native metric type (though it does support them via histograms)

How It Works

DogStatsD accepts custom metrics, events, and service checks over UDP and periodically aggregates and forwards them to Datadog. Because it uses UDP, your application can send metrics to DogStatsD and resume its work without waiting for a response. If DogStatsD ever becomes unavailable, your application won’t skip a beat.

As it receives data, DogStatsD aggregates multiple data points for each unique metric into a single data point over a period of time called the flush interval. Let’s walk through an example to see how this works.

Suppose you want to know how many times your Python application is calling a particular database query. Your application can tell DogStatsD to increment a counter each time the query is called:

def query_my_database():
    dog.increment('database.query.count')
    # Run the query ...

If this function executes one hundred times during a flush interval (ten seconds, by default), it will send DogStatsD one hundred UDP packets that say “increment the counter ‘database.query.count’”. DogStatsD will aggregate these points into a single metric value—100, in this case—and send it to Datadog where it will be stored and available for graphing alongside the rest of your metrics.

Setup

Once you have the Datadog Agent installed on your application servers/containers—or anywhere your application can reliably reach—grab the DogStatsD client library for your application language and you’ll be ready to start hacking. You can use any generic StatsD client to send metrics to DogStatsD, but you won’t be able to use any of the Datadog-specific features mentioned above.

By default, DogStatsD listens on UDP port 8125. If you need to change this, configure the dogstatsd_port option in the main Agent configuration file:

# Make sure your client is sending to the same port.
dogstatsd_port: 18125

Restart DogStatsD to effect the change.

Data Types

While StatsD only accepts metrics, DogStatsD accepts all three major data types Datadog supports: metrics, events, and service checks. This section shows typical use cases for each type.

Each example is in Python using datadogpy, but each data type shown is supported similarly in other DogStatsD client libraries.

Metrics

The first four metrics types—gauges, counters, timers, and sets—will be familiar to StatsD users. The last one—histograms—is specific to DogStatsD.

Gauges

Gauges track the ebb and flow of a particular metric value over time, like the number of active users on a website:

from datadog import statsd

statsd.gauge('mywebsite.users.active', get_active_users())

Counters

Counters track how many times something happens per second, like page views:

from datadog import statsd

def render_page():
  statsd.increment('mywebsite.page_views') # add 1
  # Render the page...

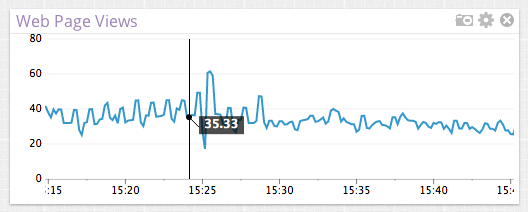

With this one line of code we can start graphing the data:

DogStatsD normalizes counters over the flush interval to report per-second units. In the graph above, the marker is reporting 35.33 web page views per second at ~15:24. In contrast, if one person visited the webpage each second, the graph would be a flat line at y = 1.

To increment or measure values over time rather than per second, use a gauge.

Sets

Sets count the number of unique elements in a group. To track the number of unique visitors to your site, use a set:

def login(self, user_id):
    statsd.set('users.uniques', user_id)
    # Now log the user in ...

Timers

Timers measure the amount of time a section of code takes to execute, like the time it takes to render a web page. In Python, you can create timers with a decorator:

from datadog import statsd

@statsd.timed('mywebsite.page_render.time')
def render_page():
  # Render the page...

or with a context manager:

from datadog import statsd

def render_page():
  # First some stuff we don't want to time
  boilerplate_setup()

  # Now start the timer
  with statsd.timed('mywebsite.page_render.time'):
    # Render the page...

In either case, as DogStatsD receives the timer data, it calculates the statistical distribution of render times and sends the following metrics to Datadog:

mywebsite.page_render.time.count - the number of times the render time was sampled
mywebsite.page_render.time.avg - the average render time
mywebsite.page_render.time.median - the median render time
mywebsite.page_render.time.max - the maximum render time
mywebsite.page_render.time.95percentile - the 95th percentile render time

Under the hood, DogStatsD actually treats timers as histograms; Whether you send timer data using the methods above, or send it as a histogram (see below), you’ll be sending the same data to Datadog.

Histograms

Histograms calculate the statistical distribution of any kind of value. Though it would be less convenient, you could measure the render times in the previous example using a histogram metric:

from datadog import statsd

...
start_time = time.time()
page = render_page()
duration = time.time() - start_time
statsd.histogram('mywebsite.page_render.time', duration)

def render_page():
  # Render the page...

This produces the same five metrics shown in the Timers section above: count, avg, median, max, and 95percentile.

But histograms aren’t just for measuring times. You can track distributions for anything, like the size of files users upload to your site:

from datadog import statsd

def handle_file(file, file_size):
  # Handle the file...

  statsd.histogram('mywebsite.user_uploads.file_size', file_size)
  return

Histograms are an extension to StatsD, so you’ll need to use a DogStatsD client library.

Metric option: Sample Rates

Since the overhead of sending UDP packets can be too great for some performance intensive code paths, DogStatsD clients support sampling, i.e. only sending metrics a percentage of the time. The following code sends a histogram metric only about half of the time:

dog.histogram('my.histogram', 1, sample_rate=0.5)

Before sending the metric to Datadog, DogStatsD uses the sample_rate to correct the metric value, i.e. to estimate what it would have been without sampling.

Sample rates only work with counter, histogram, and timer metrics.

Events

DogStatsD can emit events to your Datadog event stream. For example, you may want to see errors and exceptions in Datadog:

from datadog import statsd

def render_page():
  try:
    # Render the page...
    # ..
  except RenderError as err:
    statsd.event('Page render error!', err.message, alert_type='error')

Service Checks

Finally, DogStatsD can send service checks to Datadog. Use checks to track the status of services your application depends on:

from datadog import statsd

conn = get_redis_conn()
if not conn:
  statsd.service_check('mywebsite.can_connect_redis', statsd.CRITICAL)
else:
  statsd.service_check('mywebsite.can_connect_redis', statsd.OK)
  # Do your redis thing...

Tagging

You can add tags to any metric, event, or service check you send to DogStatsD. For example, you could compare the performance of two algorithms by tagging a timer metric with the algorithm version:

@statsd.timed('algorithm.run_time', tags=['algorithm:one'])
def algorithm_one():
    # Do fancy things here ...

@statsd.timed('algorithm.run_time', tags=['algorithm:two'])
def algorithm_two():
    # Do fancy things (maybe faster?) here ...

Tagging is an extension to StatsD, so you’ll need to use a DogStatsD client library.

Datagram Format

This section specifies the raw datagram format for each data type DogStatsD accepts. You don’t need to know this if you’re using any of the DogStatsD client libraries, but if you want to send data to DogStatsD without the libraries or you’re writing your own library, here’s how to format the data.

Metrics

metric.name:value|type|@sample_rate|#tag1:value,tag2

metric.name — a string with no colons, bars, or @ characters. See the metric naming policy.
value — an integer or float.
type — c for counter, g for gauge, ms for timer, h for histogram, s for set.
sample rate (optional) — a float between 0 and 1, inclusive. Only works with counter, histogram, and timer metrics. Default is 1 (i.e. sample 100% of the time).
tags (optional) — a comma separated list of tags. Use colons for key/value tags, i.e. env:prod. The key device is reserved; Datadog will drop a user-added tag like device:foobar.

Here are some example datagrams:

# Increment the page.views counter
page.views:1|c

# Record the fuel tank is half-empty
fuel.level:0.5|g

# Sample the song length histogram half of the time
song.length:240|h|@0.5

# Track a unique visitor to the site
users.uniques:1234|s

# Increment the active users counter, tag by country of origin
users.online:1|c|#country:china

# Track active China users and use a sample rate
users.online:1|c|@0.5|#country:china

Events

_e{title.length,text.length}:title|text|d:timestamp|h:hostname|p:priority|t:alert_type|#tag1,tag2

_e - The datagram must begin with _e
title — Event title.
text — Event text. Insert line breaks with an escaped slash (\\n)
|d:timestamp (optional) — Add a timestamp to the event. Default is the current Unix epoch timestamp.
|h:hostname (optional) - Add a hostname to the event. No default.
|k:aggregation_key (optional) — Add an aggregation key to group the event with others that have the same key. No default.
|p:priority (optional) — Set to ‘normal’ or ‘low’. Default ‘normal’.
|s:source_type_name (optional) - Add a source type to the event. No default.
|t:alert_type (optional) — Set to ‘error’, ‘warning’, ‘info’ or ‘success’. Default ‘info’.
|#tag1:value1,tag2,tag3:value3... (optional)—
The colon in tags is part of the tag list string and has no parsing purpose like for the other parameters. No default.

Here are some example datagrams:

# Send an exception
_e{21,36}:An exception occurred|Cannot parse CSV file from 10.0.0.17|t:warning|#err_type:bad_file

# Send an event with a newline in the text
_e{21,42}:An exception occurred|Cannot parse JSON request:\\n{"foo: "bar"}|p:low|#err_type:bad_request

Service Checks

_sc — the datagram must begin with _sc
name — Service check name.
status — Integer corresponding to the check status (OK = 0, WARNING = 1, CRITICAL = 2, UNKNOWN = 3).
d:timestamp (optional) — Add a timestamp to the check. Default is the current Unix epoch timestamp.
h:hostname (optional) — Add a hostname to the event. No default.
#tag1:value1,tag2,tag3:value3,... (optional) —
The colon in tags is part of the tag list string and has no parsing purpose like for the other parameters. No default.
m:service_check_message (optional) — Add a message describing the current state of the service check. This field MUST be positioned last among the metadata fields. No default.

Here’s an example datagram:

# Send a CRITICAL status for a remote connection
_sc|Redis connection|2|#redis_instance:10.0.0.16:6379|m:Redis connection timed out after 10s
