Widget Hostmap

Le widget Hostmap représente graphiquement n’importe quelle métrique pour l’ensemble de vos hosts, en proposant le même type de visualisation que la principale page Host Map :

Hostmap

Configuration

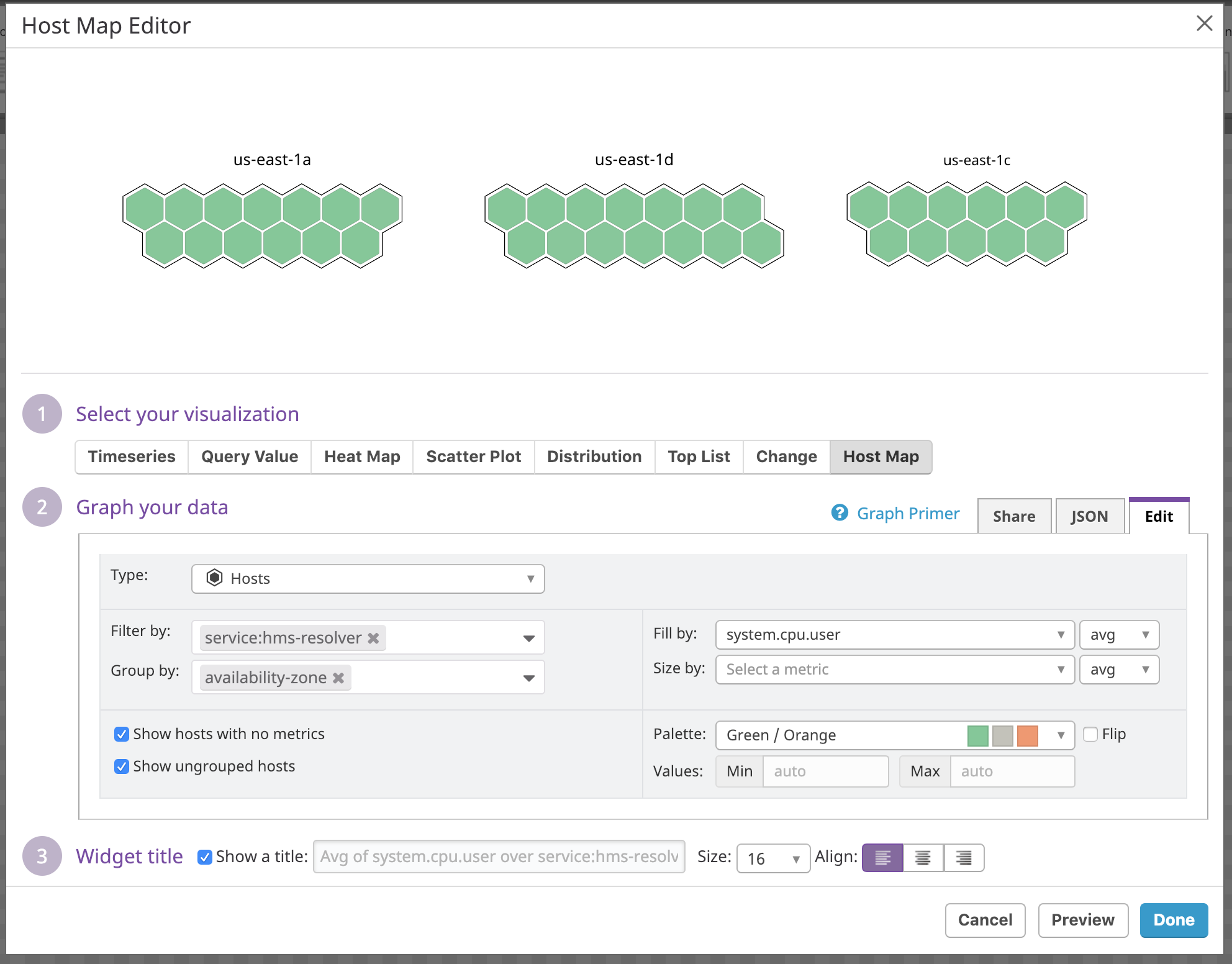

Configuration de la hostmap

Configuration

La configuration du widget Hostmap est similaire à celle de la page principale de la hostmap :

  1. Type : choisissez d’afficher des hosts ou des containers.
  2. Filter by : choisissez les hosts ou les conteneurs à afficher.
  3. Group by : agrégez vos hosts ou conteneurs selon un ou plusieurs tags.
  4. Fill by : choisissez une métrique afin de remplir votre hostmap ou votre container map.
  5. Size by (facultatif) : choisissez une métrique afin de dimensionner les éléments de votre hostmap ou de votre container map.
  6. Palette (facultatif) : choisissez une palette de couleurs.
  7. Values (facultatif) : définissez les valeurs minimale et maximale de la palette de couleurs.

Remarque : il est impossible d’effectuer une recherche en texte libre dans le widget Hostmap.

Options

Titre

Affichez un titre personnalisé pour votre widget en cochant la case Show a Title :

Titre du widget

Définissez sa taille et son alignement si vous le souhaitez.

API

Ce widget peut être utilisé avec l’API Dashboards. Consultez la documentation à ce sujet pour en savoir plus.

Le schéma JSON utilisé pour le widget Hostmap est le suivant :

Expand All

Champ

Type

Description

custom_links

[object]

List of custom links.

is_hidden

boolean

The flag for toggling context menu link visibility.

label

string

The label for the custom link URL. Keep the label short and descriptive. Use metrics and tags as variables.

link

string

The URL of the custom link. URL must include http or https. A relative URL must start with /.

override_label

string

The label ID that refers to a context menu link. Can be logs, hosts, traces, profiles, processes, containers, or rum.

group

[string]

List of tag prefixes to group by.

no_group_hosts

boolean

Whether to show the hosts that don’t fit in a group.

no_metric_hosts

boolean

Whether to show the hosts with no metrics.

node_type

enum

Which type of node to use in the map. Allowed enum values: host,container

notes

string

Notes on the title.

requests [required]

object

List of definitions.

fill

object

Updated host map.

apm_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

event_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

log_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

network_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

process_query

object

The process query to use in the widget.

filter_by

[string]

List of processes.

limit

int64

Max number of items in the filter list.

metric [required]

string

Your chosen metric.

search_by

string

Your chosen search term.

profile_metrics_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

q

string

Query definition.

rum_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

security_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

size

object

Updated host map.

apm_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

event_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

log_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

network_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

process_query

object

The process query to use in the widget.

filter_by

[string]

List of processes.

limit

int64

Max number of items in the filter list.

metric [required]

string

Your chosen metric.

search_by

string

Your chosen search term.

profile_metrics_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

q

string

Query definition.

rum_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

security_query

object

The log query.

compute

object

Define computation for a log query.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

group_by

[object]

List of tag prefixes to group by in the case of a cluster check.

facet [required]

string

Facet name.

limit

int64

Maximum number of items in the group.

sort

object

Define a sorting method.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

order [required]

enum

Widget sorting methods. Allowed enum values: asc,desc

index

string

A coma separated-list of index names. Use "*" query all indexes at once. Multiple Indexes

multi_compute

[object]

This field is mutually exclusive with compute.

aggregation [required]

string

The aggregation method.

facet

string

Facet name.

interval

int64

Define a time interval in seconds.

search

object

The query being made on the logs.

query [required]

string

Search value to apply.

scope

[string]

List of tags used to filter the map.

style

object

The style to apply to the widget.

fill_max

string

Max value to use to color the map.

fill_min

string

Min value to use to color the map.

palette

string

Color palette to apply to the widget.

palette_flip

boolean

Whether to flip the palette tones.

title

string

Title of the widget.

title_align

enum

How to align the text on the widget. Allowed enum values: center,left,right

title_size

string

Size of the title.

type [required]

enum

Type of the host map widget. Allowed enum values: hostmap

default: hostmap

{
  "custom_links": [
    {
      "is_hidden": false,
      "label": "Search logs for {{host}}",
      "link": "https://app.datadoghq.com/logs?query={{host}}",
      "override_label": "logs"
    }
  ],
  "group": [],
  "no_group_hosts": false,
  "no_metric_hosts": false,
  "node_type": "string",
  "notes": "string",
  "requests": {
    "fill": {
      "apm_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      },
      "event_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      },
      "log_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      },
      "network_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      },
      "process_query": {
        "filter_by": [],
        "limit": "integer",
        "metric": "system.load.1",
        "search_by": "string"
      },
      "profile_metrics_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      },
      "q": "string",
      "rum_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      },
      "security_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      }
    },
    "size": {
      "apm_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      },
      "event_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      },
      "log_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      },
      "network_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      },
      "process_query": {
        "filter_by": [],
        "limit": "integer",
        "metric": "system.load.1",
        "search_by": "string"
      },
      "profile_metrics_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      },
      "q": "string",
      "rum_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      },
      "security_query": {
        "compute": {
          "aggregation": "avg",
          "facet": "@duration",
          "interval": 5000
        },
        "group_by": [
          {
            "facet": "resource_name",
            "limit": 50,
            "sort": {
              "aggregation": "avg",
              "facet": "@string_query.interval",
              "order": "desc"
            }
          }
        ],
        "index": "days-3,days-7",
        "multi_compute": [
          {
            "aggregation": "avg",
            "facet": "@duration",
            "interval": 5000
          }
        ],
        "search": {
          "query": ""
        }
      }
    }
  },
  "scope": [],
  "style": {
    "fill_max": "string",
    "fill_min": "string",
    "palette": "string",
    "palette_flip": false
  },
  "title": "string",
  "title_align": "string",
  "title_size": "string",
  "type": "hostmap"
}

Pour aller plus loin

Documentation, liens et articles supplémentaires utiles:

Créer des dashboards avec JSONDOCUMENTATION more more
