DORA Metrics

CI Visibility is not available in the selected site () at this time.

DORA Metrics are in private beta. Fill out the form below to be added to the waitlist.

Request Access

Overview

DevOps Research and Assessment (DORA) metrics are four key metrics used to indicate the velocity and stability of software development.

Deployment Frequency
How often an organization successfully releases to production.
Lead Time for Changes
The amount of time it takes a commit to get into production.
Change Failure Rate
The percentage of deployments causing a failure in production.
Time to Restore Service
How long it takes an organization to recover from a failure in production.

Defining and tracking DORA metrics can help you identify areas of improvement for your team or organization’s speed and quality of software delivery.

Set up DORA Metrics

Services tracked for the DORA Metrics Deployment Frequency and Change Lead Time must be registered in the Service Catalog. For more information, see Adding Entries to Service Catalog. The team ownership from the Service Catalog is automatically associated with all metrics.

Deployment frequency

Submit a deployment with the DORA Metrics API or with the datadog-ci dora deployment command using the datadog-ci CLI tool.

You are required to provide the following deployment attributes:

  • service
  • started_at
  • finished_at

You can optionally add the following deployment attributes:

  • repository_url and commit_sha must both be present if you would like your deployment to be factored into change lead time.
  • env to accurately filter your DORA metrics by environment.

Example

See the DORA Metrics API reference documentation for the full spec and more examples with the API SDKs.

For the following example, replace <DD_SITE> in the URL with :

  curl -X POST "https://api.<DD_SITE>/api/v2/dora/deployment" \
  -H "Accept: application/json" \
  -H "Content-Type: application/json" \
  -H "DD-API-KEY: ${DD_API_KEY}" \
  -d @- << EOF
  {
    "data": {
      "attributes": {
        "service": "shopist",
        "started_at": 1693491974000000000,
        "finished_at": 1693491984000000000,
        "git": {
          "commit_sha": "66adc9350f2cc9b250b69abddab733dd55e1a588",
          "repository_url": "https://github.com/organization/example-repository"
        },
        "env": "prod"
      }
    }
  }
EOF

The datadog-ci CLI tool provides a shortcut to send the deployments within CI.

For the following example, set the DD_SITE environment variable to :

export DD_BETA_COMMANDS_ENABLED=1
export DD_SITE="<DD_SITE>"
export DD_API_KEY="<API_KEY>"

export deploy_start=`date +%s`
./your-deploy-script.sh
datadog-ci dora deployment --service shopist --env prod \
    --started-at $deploy_start --finished-at `date +%s` \
    --git-repository-url "https://github.com/organization/example-repository" \
    --git-commit-sha 66adc9350f2cc9b250b69abddab733dd55e1a588

You can optionally add the following parameters:

  • finished-at is automatically set to now if not provided.
  • env
  • git-repository-url and git-commit-sha can be omitted if the deployment CI job is running on the exact same Git checkout that has been deployed.
  • skip-git disables the Git details (change lead time is not available).

Lead time for changes

Lead time for changes, or change lead time, is calculated as the time from creation of the first commit to when that commit’s deployment is finished.

For change lead time to be available, you must send deployment events while your repository metadata is being synchronized to Datadog.

The deployment events must include the repository_url and commit_sha fields.

Change lead time automatically finds new commits included since the previous deployment. Change lead time is not available for the first deployment of a service.

Datadog doesn't store the actual content of files in your repository, only Git commit and tree objects.

Install Datadog’s GitHub integration on the GitHub integration tile to allow Datadog to synchronize your repository metadata automatically. When specifying permissions on the integration tile, select at least Read permissions for Contents.

You can upload your repository metadata with the datadog-ci git-metadata upload command.

When you run datadog-ci git-metadata upload within a Git repository, Datadog receives the repository URL, the commit SHA of the current branch, and a list of tracked file paths.

Run this command in CI for every new commit.

Validation

To ensure the data is being collected, run datadog-ci git-metadata upload in your CI pipeline.

You can expect to see the following output:

Reporting commit 007f7f466e035b052415134600ea899693e7bb34 from repository git@github.com:organization/example-repository.git.
180 tracked file paths will be reported.
✅  Handled in 0.077 seconds.

Filter Git commits in monorepos

If you are using a monorepo (building several services from the same Git repository), not every Git commit affects the lead time of all services.

To filter the commits measured to only the ones that affect the service, specify the source code glob file path patterns in the Service definition.

If the service definition contains a full GitHub URL to the application folder, a single path pattern is automatically used.

Example (schema version v2.2):

links:
  - name: shopist
    type: repo
    provider: github
    url: https://github.com/organization/example-repository/tree/main/src/apps/shopist

DORA Metrics for the shopist service only consider the git commits that include changes within src/apps/shopist/**. You can configure more granular control of the filtering with extensions[datadoghq.com/dora-metrics].

Example (schema version v2.2):

extensions:
  datadoghq.com/dora-metrics:
    source_patterns:
      - src/apps/shopist/**
      - src/libs/utils/**

DORA Metrics for the service shopist only consider the Git commits that include changes within src/apps/shopist/** or src/libs/utils/**.

Change failure rate

Change failure rate is calculated as the percentage of incident events out of the total number of deployments.

Submit deployment events as described in deployment frequency. Additionally, submit an incident with the DORA Metrics API.

You are required to provide the following incident attributes:

  • services or team. At least one is required.
  • started_at

You can optionally add the following incident attributes:

  • finished_at for resolved incidents. Required for time to restore service.
  • id for identifying incidents when they are created and resolved. This attribute is user-generated; when not provided, the endpoint returns a Datadog-generated UUID.
  • name to describe the incident.
  • severity
  • env to accurately filter your DORA metrics by environment.
  • repository_url
  • commit_sha

See the DORA Metrics API reference documentation for the full spec and more examples with the API SDKs.

Example

curl -X POST "https://api./api/v2/dora/incident" \
  -H "Accept: application/json" \
  -H "Content-Type: application/json" \
  -H "DD-API-KEY: ${DD_API_KEY}" \
  -d @- << EOF
  {
    "data": {
      "attributes": {
        "services": ["shopist"],
        "team": "shopist-devs"
        "started_at": 1693491974000000000,
        "finished_at": 1693491984000000000,
        "git": {
          "commit_sha": "66adc9350f2cc9b250b69abddab733dd55e1a588",
          "repository_url": "https://github.com/organization/example-repository"
        },
        "env": "prod",
        "name": "Web server is down failing all requests",
        "severity": "High"
      }
    }
  }
EOF

Time to restore service

Mean time to restore (MTTR) is calculated as the duration distribution for resolved incident events.

Resolved incidents are incidents that include finished_at.

Follow the steps described in change failure rate to send incident events.

Events can be sent both at the start of and after incident resolution. Incident events are matched by the env, service, and started_at attributes.

Use DORA Metrics

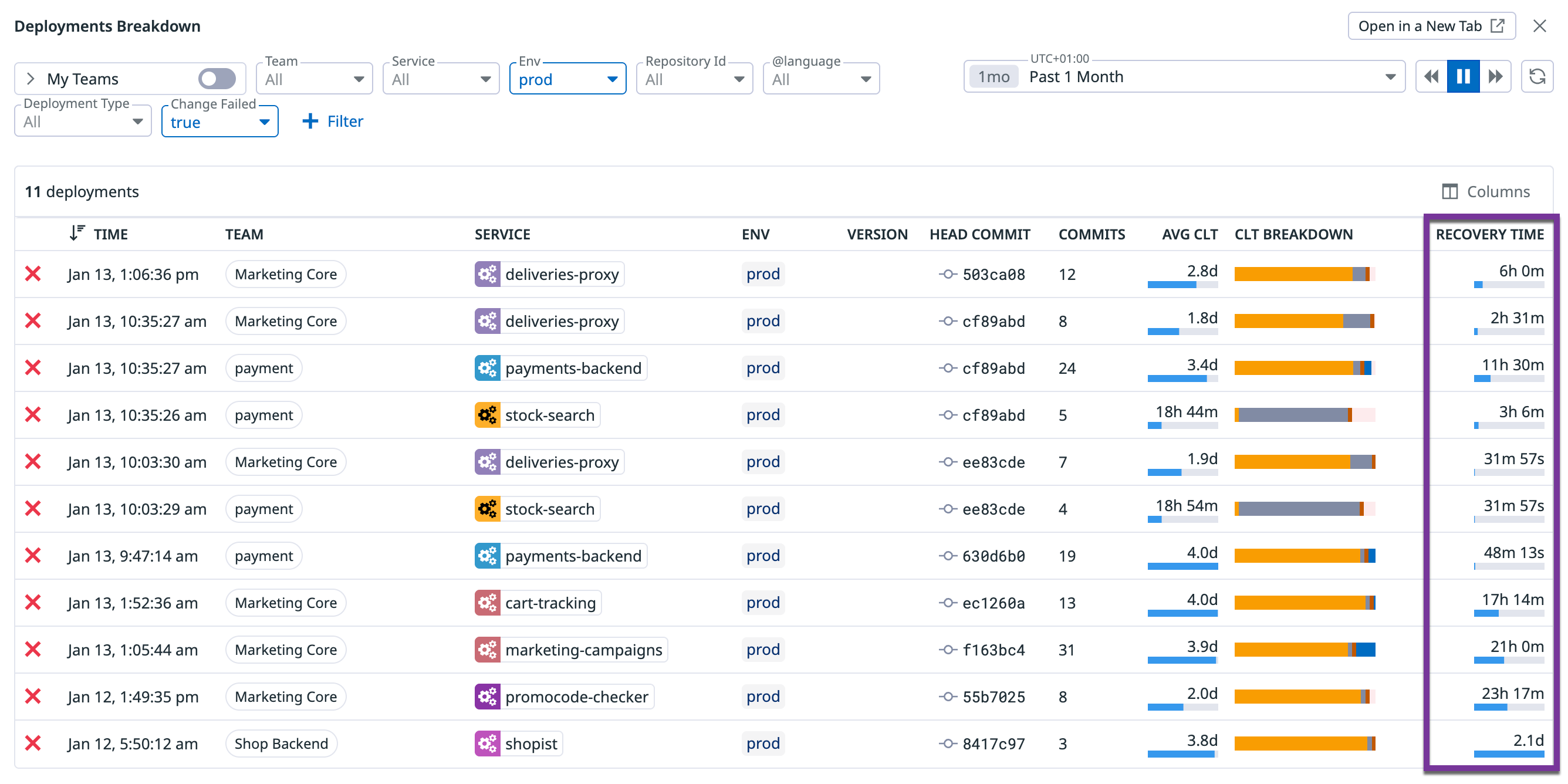

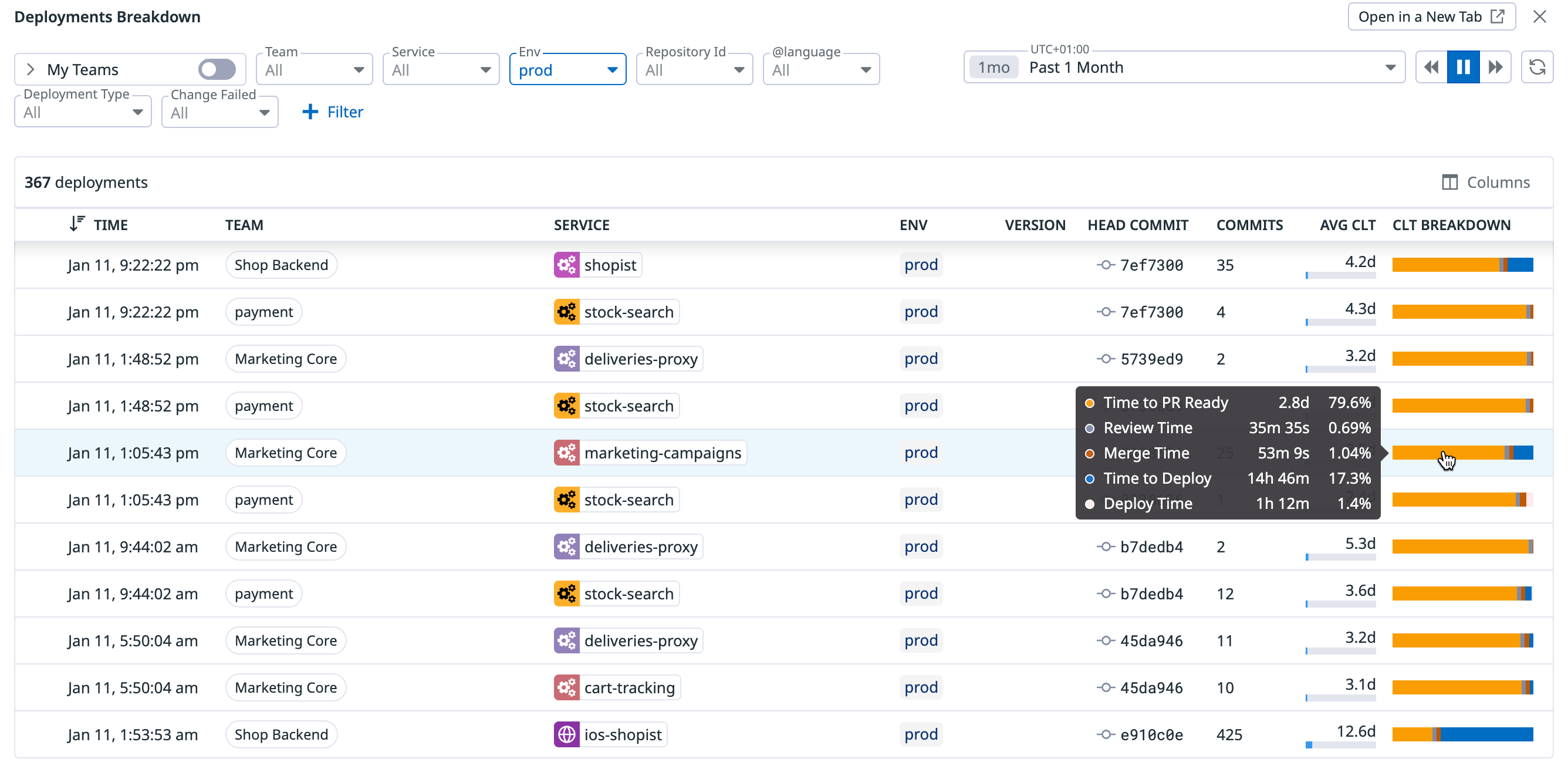

You can access and visualize your DORA metrics and filter them by team, service, repository, environment, and time period on the DORA Metrics page.

Use the information on this page to identify improvements or regressions for each metric, visualize changes, and compare trends over time. DORA metrics can be exported to dashboards and alerted on using metric monitors.

Limitations

  • Deployment and incident events must be sent as soon as possible. Events for which the finished_at timestamp is 1 hour older than the current time are not accepted.
  • Deployments or incidents of the same service cannot occur at the same second.
  • For change lead time, the retention of Git metadata is 1 month. Commits older that 1 month are not accounted for.
