Overview

This page walks Technology Partners through creating a log pipeline. A log pipeline is required if your integration sends logs to Datadog.

When developing your integration to send logs to Datadog follow these guidelines to ensure the best experience for your users.

Best practices

Before creating a log pipeline, consider the following guidelines and best practices:

The integration must use supported Datadog logs endpoints

Your integration must use one of the supported endpoints exposed by Datadog for log ingestion. You can otherwise use the Logs Ingestion HTTP endpoint to send logs to Datadog.

The integration must support all Datadog sites

Users must be able to choose between the different Datadog sites whenever applicable. See Getting Started with Datadog Sites for more information about site differences.

Your Datadog site endpoint is http-intake.logs..

Allow users to attach custom tags while setting up your integration

Tags can be set as key-value attributes in the JSON body of your integration’s log payload. Datadog recommends allowing users to set custom tags for an integration. If the integration sends logs through the API, tags can optionally be set using the ddtags=<TAGS> query parameter.

Set the integration’s logs source tag to the integration name

Datadog recommends setting the source tag to <integration_name> (source:okta) for an application. source must be set before sending logs to Datadog’s endpoints as it cannot be remapped in the Datadog UI.

The source tag must be in lowercase and must not be editable by users as it is used to enable integration pipelines and dashboards.

Avoid sending logs that contain arrays in the JSON body whenever possible

While it’s possible to send array data in your logs, Datadog recommends avoiding arrays as they cannot be faceted.

Do not log Datadog API Keys

Datadog API Keys can either be passed in the Header or as part of the HTTP Path of your API requests. For examples, see Send Logs API documentation. Avoid logging the API Key in your setup.

Do not use Datadog Application Keys

Datadog Application Keys are not required to send logs using the HTTP endpoint.

Create log integration assets

You can create and design your log integration assets directly within your Datadog partner account.

Log integrations consist of two sets of assets: pipelines and associated facets. Centralizing logs from various technologies and applications can produce many unique attributes. To use out-of-the-box dashboards, Technology Partner Integrations should rely on Datadog’s standard naming convention when creating integrations.

After finalizing your Datadog Integration design and successfully sending logs to Datadog’s log endpoint(s), define your log pipelines and facets to enrich and structure your integration’s Logs.

For information about becoming a Datadog Technology Partner, and gaining access to an integration development sandbox, read Build an Integration.

Pipelines overview

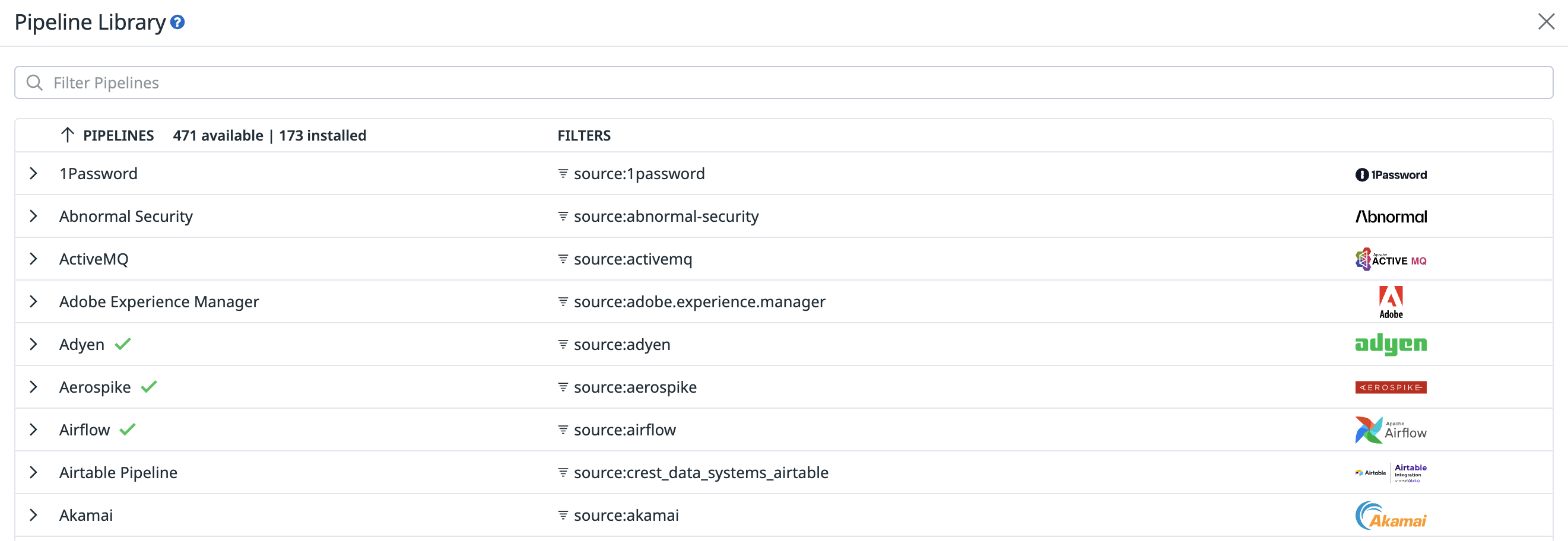

Logs sent to Datadog are processed in log pipelines using pipeline processors. These processors allow users to parse, remap, and extract attribute information, enriching and standardizing logs for use across the platform.

Create a pipeline

Create a log pipeline to process specified logs with pipeline processors.

1. From the Pipelines page, click + New Pipeline.
2. In the Filter field, enter the unique source tag that defines the log source for the Technology Partner’s logs. For example, source:okta for the Okta integration. Note: Make sure that logs sent through the integration are tagged with the correct source tags before they are sent to Datadog.
3. Optionally, add tags and a description.
4. Click Create.

After you set-up a pipeline, add processors to enrich and structure the logs further.

Add pipeline processors

Before defining your pipeline processors, review Datadog’s Standard Attributes.

Use processors within your pipelines to enrich and restructure your data, and generate log attributes. For a list of all log processors, see the Processors documentation.

Requirements

Map the application’s logs attributes to Datadog’s Standard Attributes

Use the Attribute Remapper to map attribute keys to Datadog Standard Attributes where possible. For example, an attribute for a network service client IP value should be remapped to network.client.ip.

Map the log service tag to the name of the service producing telemetry

Use the Service Remapper to remap the service attribute. When source and service share the same value, remap the service tag to the source tag. service tags must be lowercase.

Map the log’s internal timestamp to its official Datadog timestamp

Use the Date Remapper to define the official timestamp for logs. If a log’s timestamp does not map to a standard date attribute, Datadog sets its timestamp to the time of ingestion.

Map the custom status attributes of the logs to the official Datadog status attribute

Use a Status Remapper to remap the status of a log, or a Category Processor for statuses mapped to a range (as with HTTP status codes).

Map the custom message attribute of the logs to the official Datadog message attribute

Use the message remapper to define the official message of the log if application logs do not map to the standard message attribute. This allows users to search for logs using free text.

Set a namespace for custom attributes within your logs

Generic log attributes that do not map to a Datadog Standard Attribute must be namespaced if they are mapped to Facets. For example, file would be remapped to integration_name.file. Use the Attribute Remapper to set attribute keys to a new namespaced attribute.

1. Expand the newly created pipeline and click Add Processor to begin building your pipeline using processors.
2. If the integration’s logs aren’t in JSON format, add the Grok Processor to extract attribute information. Grok processors parse out attributes and enrich logs prior to remapping or further processing.
3. After extracting log attributes, remap them to Datadog’s Standard Attributes where possible using Attribute Remappers.
4. Set the timestamp of an integration’s logs to be its official Datadog timestamp using the Date Remapper.
5. For more advanced processing and data transformations, make use of additional processors.
   For example, the Arithmetic Processor can be used to calculate information based off of attributes, or the String Builder Processor can concatenate multiple string attributes.

Tips

• Remove original attributes when remapping log attributes by using preserveSource:false. This helps avoid confusion and removes duplicates.
• To maintain optimal grok parsing performance, avoid wildcard matchers such as %{data:} and %{regex(".*"):}. Make your parsing statements as specific as possible.
• Take the free course Going Deeper with Logs Processing for an overview on writing processors and leveraging standard attributes.

Facets overview

Facets are specific qualitative or quantitative attributes that can be used to filter and narrow down search results. While facets are not strictly necessary for filtering search results, they play a crucial role in helping users understand the available dimensions for refining their search.

Facets for standard attributes are automatically added by Datadog when a pipeline is published. Review if the attribute should be remapped to a Datadog Standard Attribute.

Not all attributes are meant to be used as a facet. The need for facets in integrations is focused on two things:

• Facets provide a straightforward interface for filtering logs. They are leveraged in Log Management autocomplete features, allowing users to find and aggregate key information found in their logs.
• Facets allow for attributes with low readability to be renamed with a label that is easier to understand. For example: @deviceCPUper → Device CPU Utilization Percentage.

You can create facets in the Log Explorer.

Create facets

Correctly defining facets is important as they improve the usability of indexed logs in analytics, monitors, and aggregation features across Datadog’s Log Management product.

They allow for better findability of application logs by populating autocomplete features across Log Management.

Requirements

Attributes mapped to custom facets must be namespaced first

Generic custom attributes that do not map to Datadog Standard Attribute must be namespaced when used with custom facets. An Attribute Remapper can be used to namespace an attribute with the integration’s name.
For example, remapping attribute_name to integration_name.attribute_name.

Custom facets must not duplicate an existing Datadog Facet

To avoid confusion with existing out-of-the-box Datadog facets, do not create custom facets that duplicate any existing facets already mapped to Datadog Standard Attributes.

Custom facets must be grouped under the source name

When creating a custom facet a group should be assigned. Set the Group value to the source, same as the integration’s name.

Custom facets must have the same data type as the mapped attribute

Set the facet data type (String, Boolean, Double, or Integer) to the same type as the Attribute mapped to it. Mismatched types prevent the facet from being used as intended and can cause it to populate incorrectly.

Add a facet or measure

1. Click on a log that contains the attribute you want to add a facet or measure for.
2. In the log panel, click the Cog icon next to the attribute.
3. Select Create facet/measure for @attribute.
4. For a measure, to define the unit, click Advanced options. Select the unit based on what the attribute represents. Note: Define the unit of a measure based on what the attribute represents.
5. Specify a facet Group to help navigate the Facet List. If the facet group does not exist, select New group, enter the name of the group matching the source tag, and add a description for the new group.
6. To create the facet, click Add.

Configure and edit facets

1. In the log panel, click the Cog icon next to the attribute that you want to configure or group.
2. Select Edit facet/measure for @attribute. If there isn’t a facet for the attribute yet, select Create facet/measure for @attribute.
3. Click Add or Update when done.

Tips

• Measures should have a unit where possible. Measures can be assigned a unit. Two families of units are available, TIME and BYTES, with units such as millisecond or gibibyte.
• Facets can be assigned a description. A clear description of the facet can help users understand how to best use it.
• If you remap an attribute and keep the original using the preserveSource:true option, define a facet on only a single one.
• When manually configuring facets in a pipeline’s .yaml configuration files, note they are assigned a source. This refers to where the attribute is captured from and can be log for attributes or tag for tags.

Review and deploy the integration

Datadog reviews the log integration based on the guidelines and requirements documented on this page and provides feedback to the Technology Partner through GitHub. In turn, the Technology Partner reviews and makes changes accordingly.

To start a review process, export your log pipeline and relevant custom facets using the Export icon on the Logs Configuration page.

Include sample raw logs with all the attributes you expect to be sent into Datadog by your integration. Raw logs comprise of the raw messages generated directly from the source application before they are sent to Datadog.

Exporting your log pipeline includes two YAML files:

• One with the log pipeline, which includes custom facets, attribute remappers, and grok parsers. The exported file is named pipeline-name.yaml.
• One with the raw sample logs provided and an empty result section. The exported file is named pipeline-name_test.yaml.

Note: Depending on your browser, you may need to adjust your settings to allow file downloads.

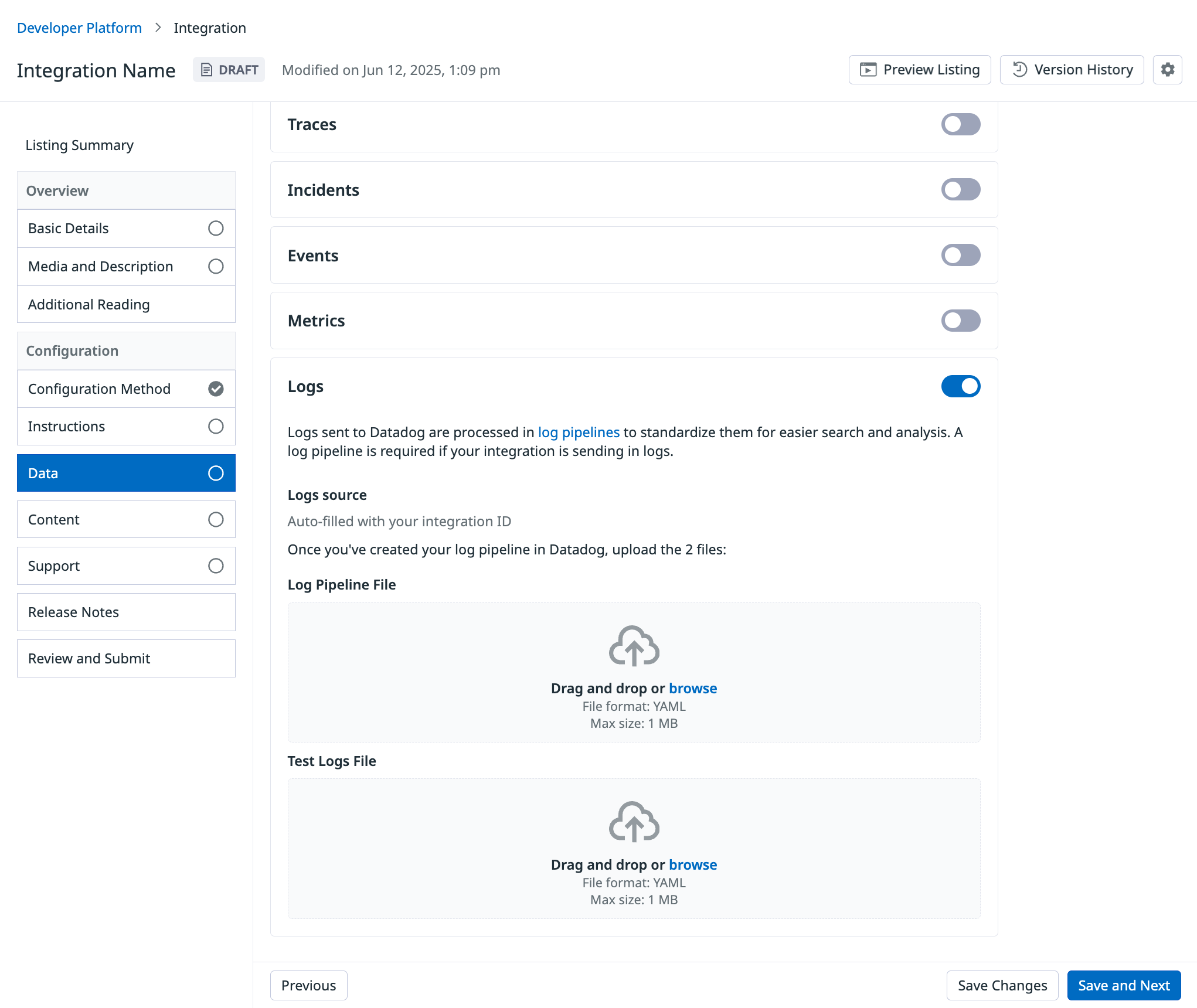

After you’ve downloaded these files, navigate to your integration’s pull request on GitHub and add them in the Assets > Logs directory. If a Logs folder does not exist yet, you can create one.

Validations are run automatically in your pull request, and validate your pipelines against the raw samples provided. These will produce a result that you can set as the result section of your pipeline-name_test.yaml file. Once the validations runs again, if no issues are detected, the logs validation should succeed.

Three common validation errors are:

1. The id field in both YAML files: Ensure that the id field matches the app_id field in your integration’s manifest.json file to connect your pipeline to your integration.
2. Not providing the result of running the raw logs you provided against your pipeline. If the resulting output from the validation is accurate, take that output and add it to the result field in the YAML file containing the raw example logs.
3. If you send service as a parameter, instead of sending it in the log payload, you must include the service field below your log samples within the yaml file.

After validations pass, Datadog creates and deploys the new log integration assets. If you have any questions, add them as comments in your pull request. Datadog team members respond within 2-3 business days.
