# Kafka Monitoring

{% callout %}
# Important note for users on the following Datadog sites: app.ddog-gov.com

{% alert level="danger" %}
This product is not supported for your selected [Datadog site](https://docs.datadoghq.com/getting_started/site). ().
{% /alert %}

{% /callout %}

With Data Streams Monitoring's Kafka Monitoring, a Datadog Agent check connects to your Kafka cluster and starts collecting health and performance metrics. Kafka Monitoring allows you to:

- **Monitor Kafka health**: See cluster, broker, topic, and partition health with throughput, lag, and replication metrics
- **Pinpoint root cause**: Correlate configuration and schema changes with lag, throughput, and errors, and trace issues to the exact topic, schema version, or configuration change
- **Connect services to topics**: See which producers and consumers interact with each topic, with linked owners, repos, on-call rotations, traces, and error logs
- **Inspect topic schemas and messages**: View schemas, compare versions, and access messages to debug poison payloads or explore the topic

## Setup{% #setup %}

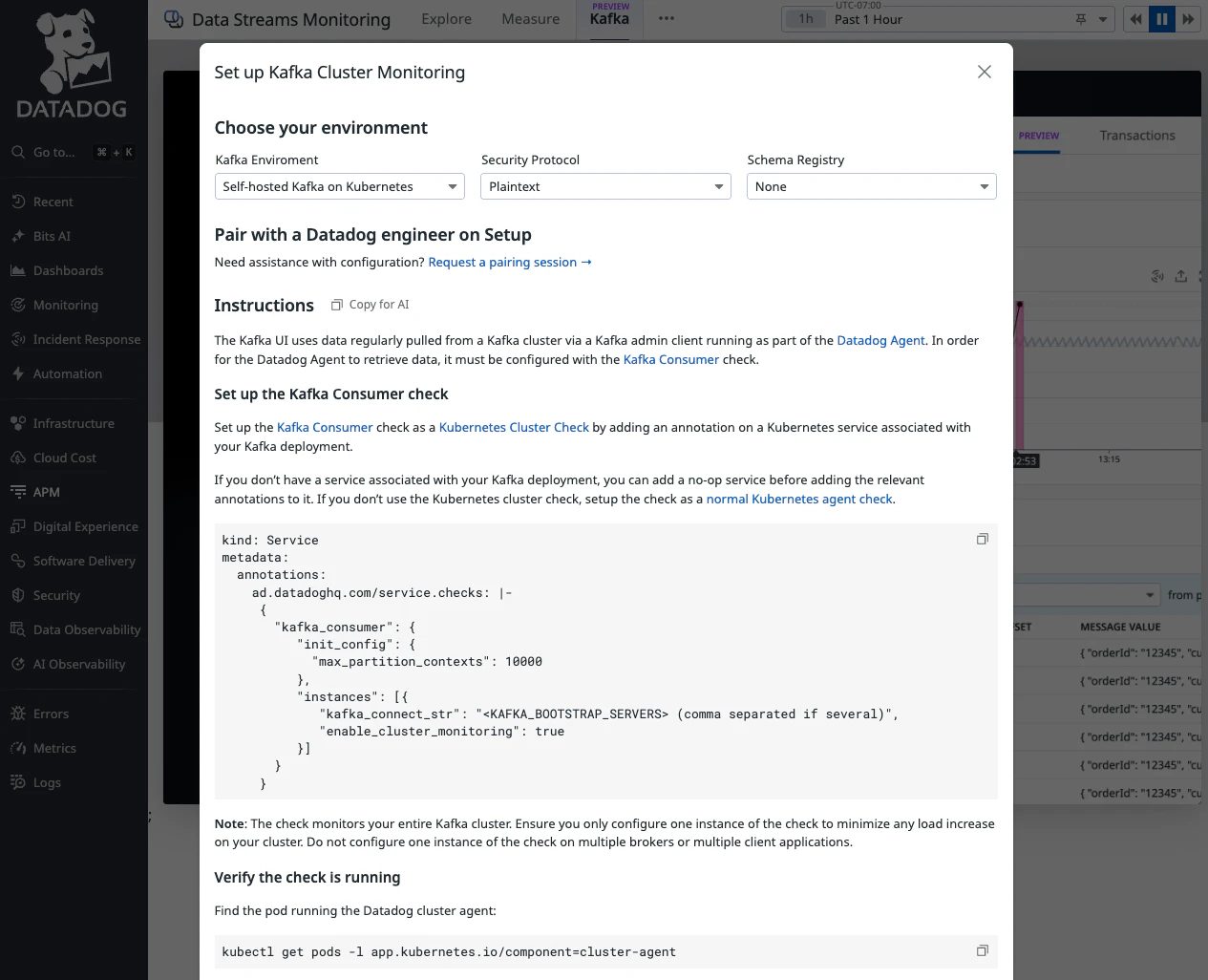

Go to the [Kafka Monitoring setup page](https://app.datadoghq.com/data-streams/kafka/setup) and click Get Started. Then choose your environment and follow the instructions. To request assistance, choose Request a pairing session.

{% image
   source="https://docs.dd-static.net/images/data_streams/kafka_setup-2.37e9d3d8dc59177d8b966d26ac5c069a.png?auto=format&fit=max&w=850 1x, https://docs.dd-static.net/images/data_streams/kafka_setup-2.37e9d3d8dc59177d8b966d26ac5c069a.png?auto=format&fit=max&w=850&dpr=2 2x"
   alt="The Kafka Monitoring setup dialog showing environment selection, security protocol, schema registry options, and Kubernetes configuration instructions" /%}

The setup page provides environment-specific configuration instructions. You can copy the instructions directly to an AI agent with **Copy for AI**.

## Workflows{% #workflows %}

### Monitor cluster health and performance{% #monitor-cluster-health-and-performance %}

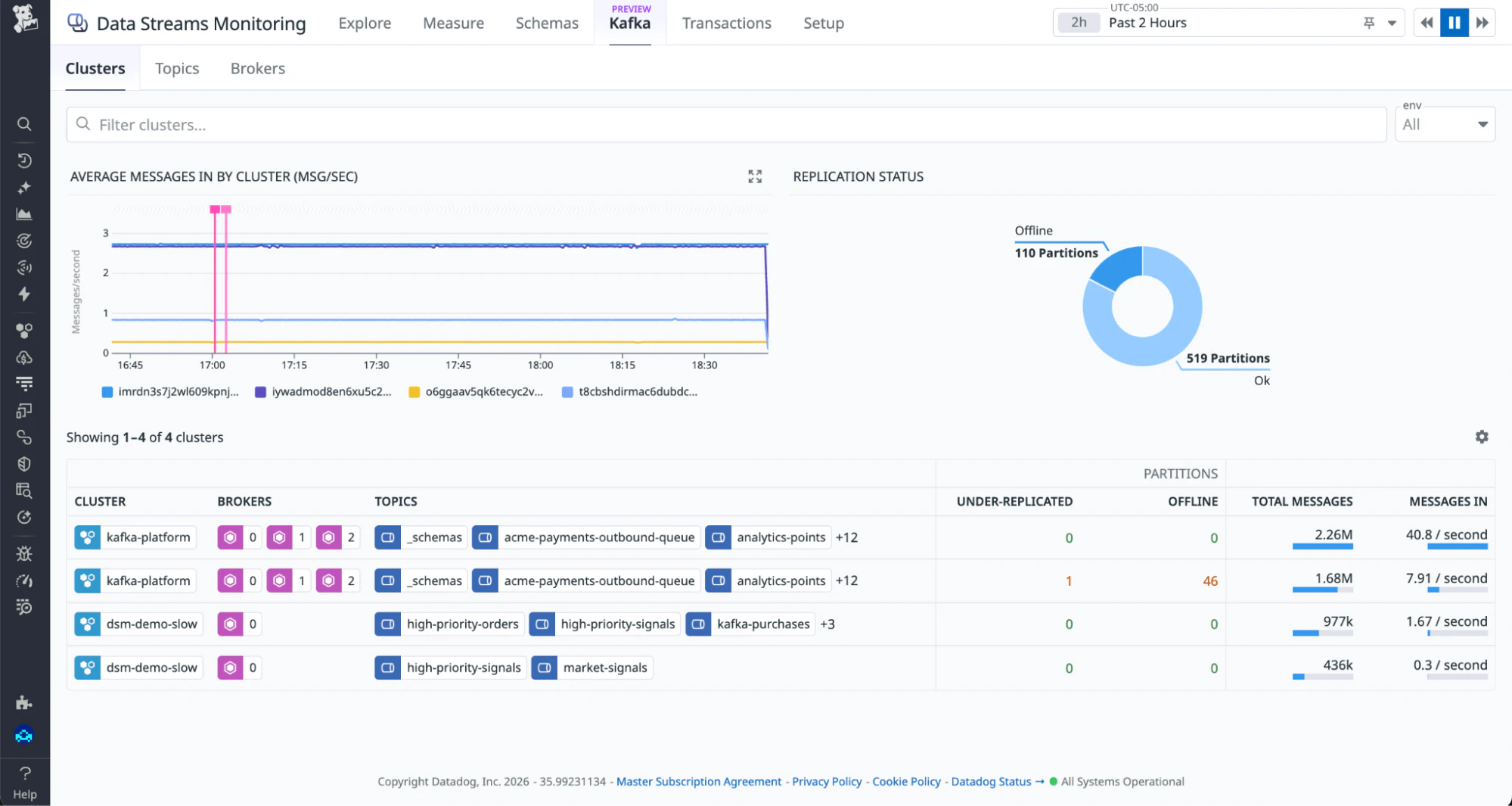

The **Clusters**, **Topics**, and **Brokers** tabs display health status across your entire Kafka infrastructure. For each topic, you can see partition count, under-replicated and offline partitions, message throughput, and consumer lag.

{% image
   source="https://docs.dd-static.net/images/data_streams/kafka_clusters_overview-2.eaa471b4f409f4be35d9bc3b61692201.png?auto=format&fit=max&w=850 1x, https://docs.dd-static.net/images/data_streams/kafka_clusters_overview-2.eaa471b4f409f4be35d9bc3b61692201.png?auto=format&fit=max&w=850&dpr=2 2x"
   alt="The Kafka Monitoring clusters view showing cluster list with broker counts, topic names, replication status, and messages-in rate" /%}

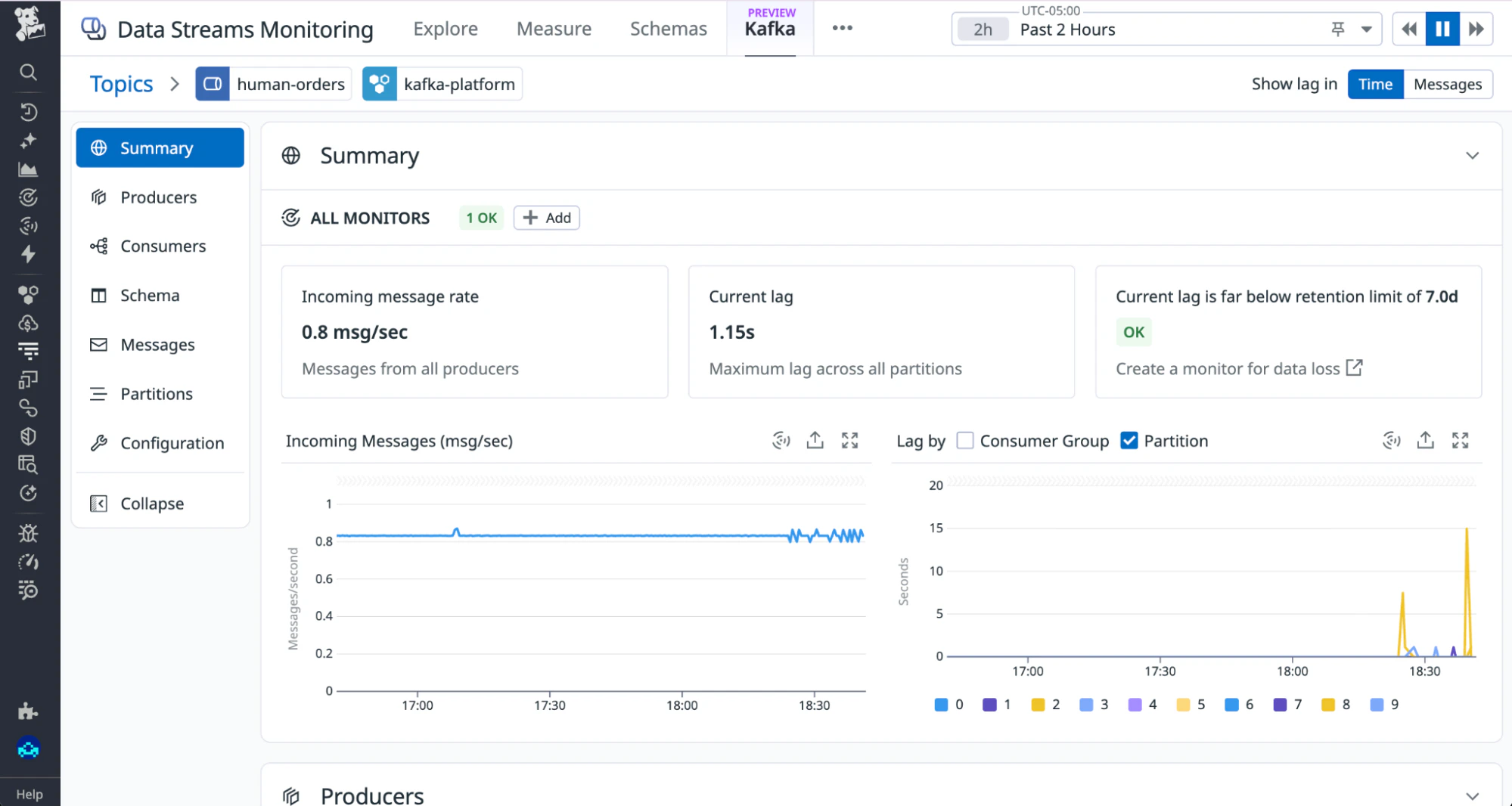

Click into any topic to see a detailed summary, including incoming message rate, maximum lag across all partitions, and whether current lag is approaching the retention limit.

{% image
   source="https://docs.dd-static.net/images/data_streams/kafka_topic_summary-2.23fb40c09ce05e82cb8fadb60941fdbf.png?auto=format&fit=max&w=850 1x, https://docs.dd-static.net/images/data_streams/kafka_topic_summary-2.23fb40c09ce05e82cb8fadb60941fdbf.png?auto=format&fit=max&w=850&dpr=2 2x"
   alt="Topic detail summary page showing incoming message rate of 0.8 msg/sec, current lag of 1.15 seconds, and lag-vs-retention status" /%}

From any metric, you can create Datadog monitors, SLOs, and dashboards.

### Correlate configuration and schema changes with health metrics{% #correlate-configuration-and-schema-changes-with-health-metrics %}

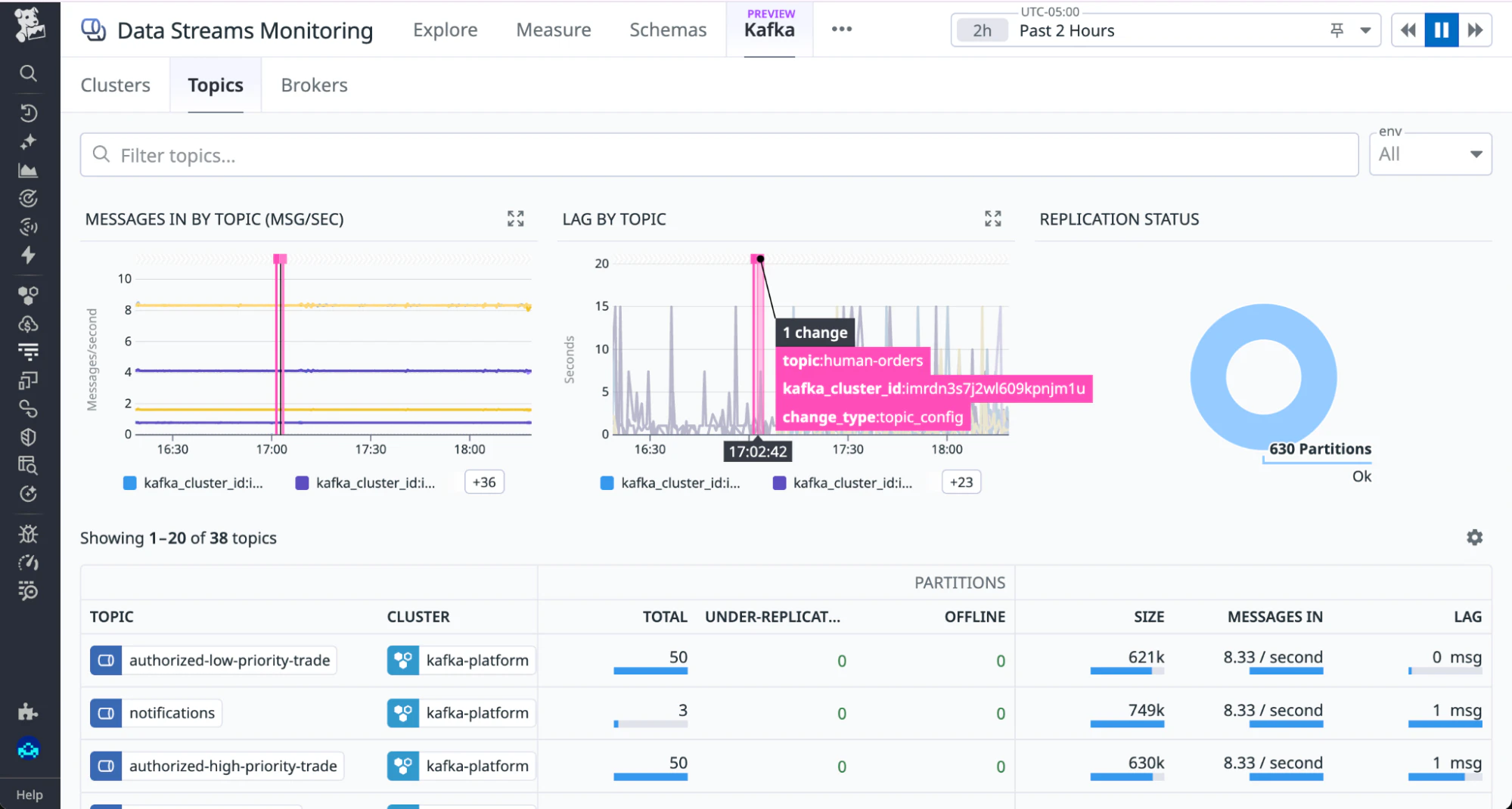

Change events are overlaid directly on throughput and lag graphs, so you can see whether a configuration or schema change coincided with a degradation.

{% image
   source="https://docs.dd-static.net/images/data_streams/kafka_topics_lag_change-2.7610fae263830f9d1503c93943ab8b9f.png?auto=format&fit=max&w=850 1x, https://docs.dd-static.net/images/data_streams/kafka_topics_lag_change-2.7610fae263830f9d1503c93943ab8b9f.png?auto=format&fit=max&w=850&dpr=2 2x"
   alt="Topics view with a topic_config change annotation at 17:02:42 overlaid on the lag-by-topic graph, showing a spike correlated with the change event" /%}

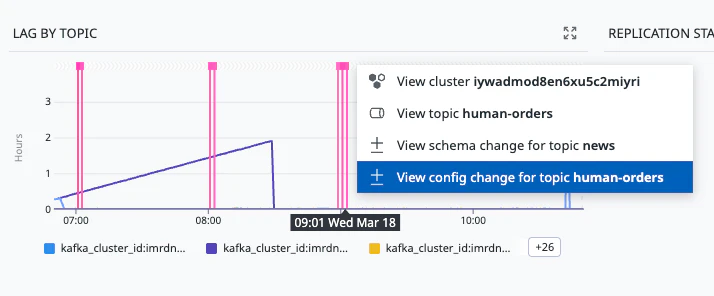

To identify exactly what changed, click on detected changes on the overlay and select **View config change**.

{% image
   source="https://docs.dd-static.net/images/data_streams/lag-by-topic-overlay.ebe66a8ed5de8bcd2ade6819fe80466b.png?auto=format&fit=max&w=850 1x, https://docs.dd-static.net/images/data_streams/lag-by-topic-overlay.ebe66a8ed5de8bcd2ade6819fe80466b.png?auto=format&fit=max&w=850&dpr=2 2x"
   alt="Topic configuration diff view comparing version 625 and 626, with max.message.bytes changed from 1000012 to 1024 highlighted" /%}

### Connect producer and consumer services to topics{% #connect-producer-and-consumer-services-to-topics %}

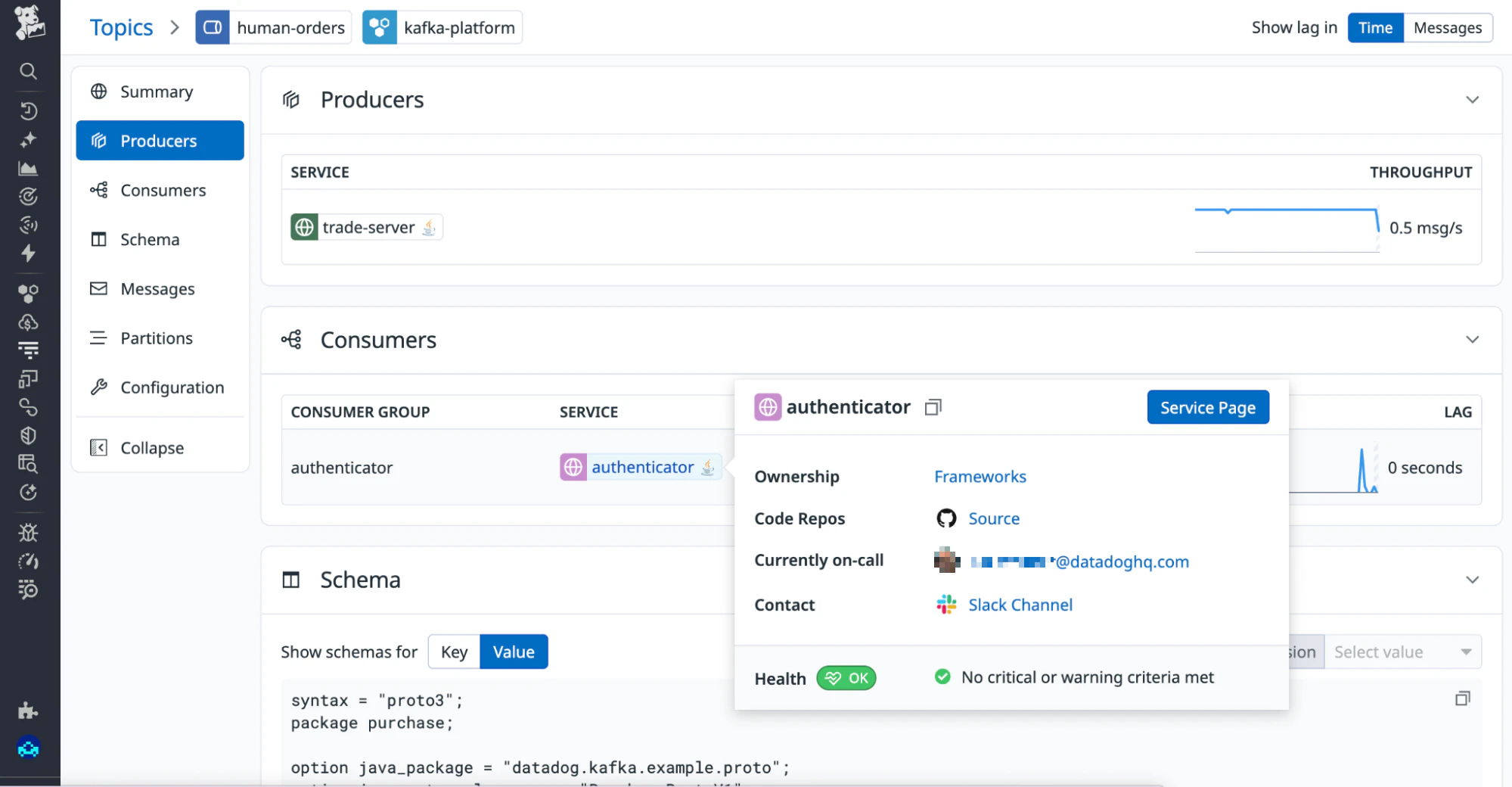

The **Producers** and **Consumers** sections of each topic show which services are reading from and writing to that topic. Hovering over a service shows ownership information from the Service Catalog: team, code repository, on-call engineer, and Slack channel.

{% image
   source="https://docs.dd-static.net/images/data_streams/kafka_topic_service_ownership.a40df6698200c0a73aa7a76f8b4f6dc1.png?auto=format&fit=max&w=850 1x, https://docs.dd-static.net/images/data_streams/kafka_topic_service_ownership.a40df6698200c0a73aa7a76f8b4f6dc1.png?auto=format&fit=max&w=850&dpr=2 2x"
   alt="Topic producers and consumers view with a service panel open showing ownership team (Frameworks), code repo, on-call engineer, Slack channel, and health status" /%}

Use this information to contact the right team when a consumer is lagging or a producer is misbehaving.

### Inspect topic schemas and messages{% #inspect-topic-schemas-and-messages %}

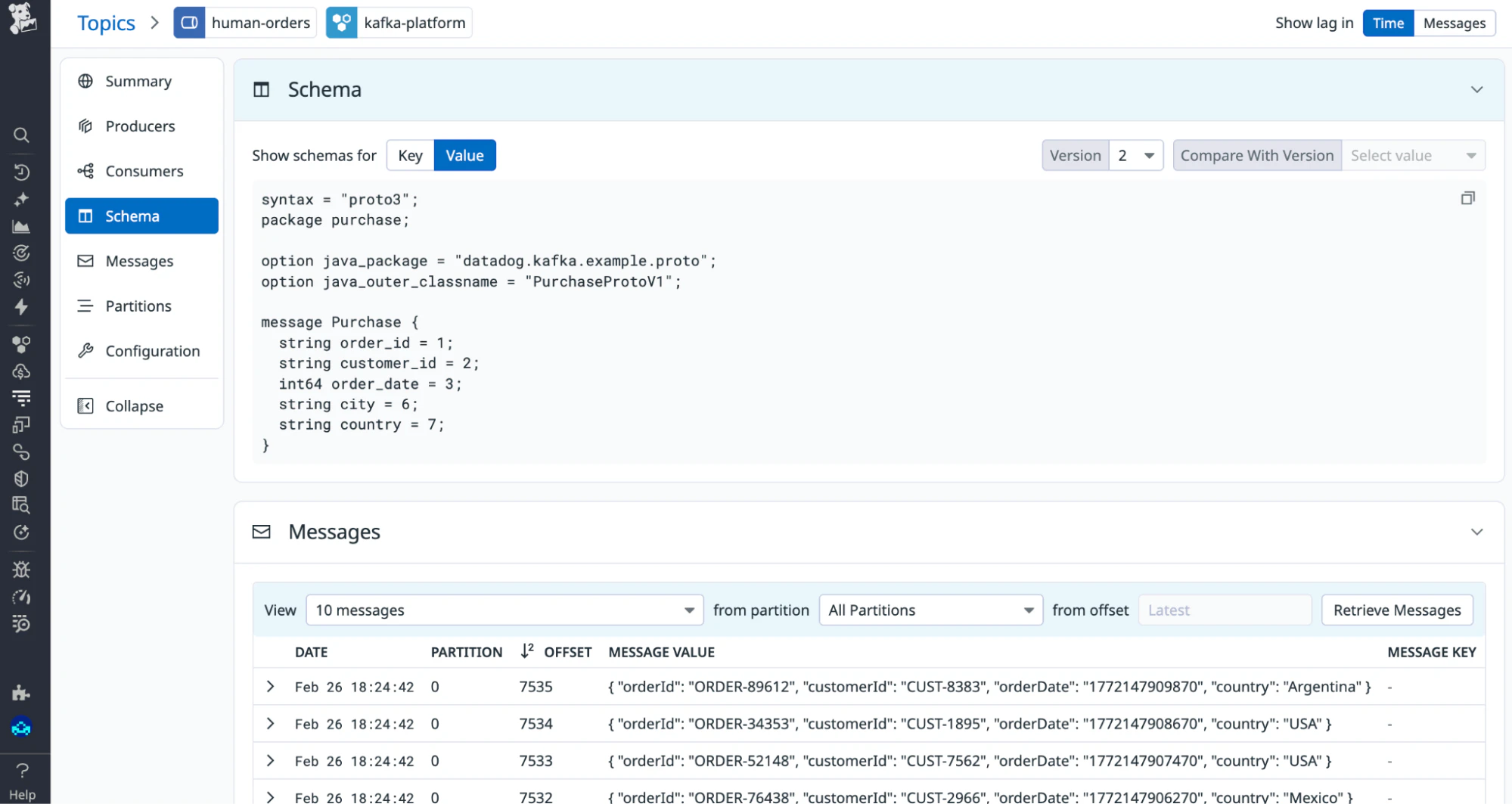

The **Schema** section shows the current schema for a topic's key or value, with version history. Use the version selector to compare schemas across versions.

The **Messages** section lets you retrieve messages by partition and offset to inspect payloads directly. This is useful for debugging poison payloads or verifying message structure after a schema change.

{% image
   source="https://docs.dd-static.net/images/data_streams/kafka_schema_messages.d188facca9bc9e9930cbf45053f2bf6b.png?auto=format&fit=max&w=850 1x, https://docs.dd-static.net/images/data_streams/kafka_schema_messages.d188facca9bc9e9930cbf45053f2bf6b.png?auto=format&fit=max&w=850&dpr=2 2x"
   alt="Topic schema and messages view showing a Protobuf schema definition and a table of recent messages with date, partition, offset, and message value" /%}

**Note**: [Message viewing](https://docs.datadoghq.com/data_streams/kafka/messages) is not enabled by default and requires additional setup. Access is controlled by per-user permissions, so you can roll out Kafka Monitoring without exposing message content. Configure message viewing separately after completing the initial setup.
